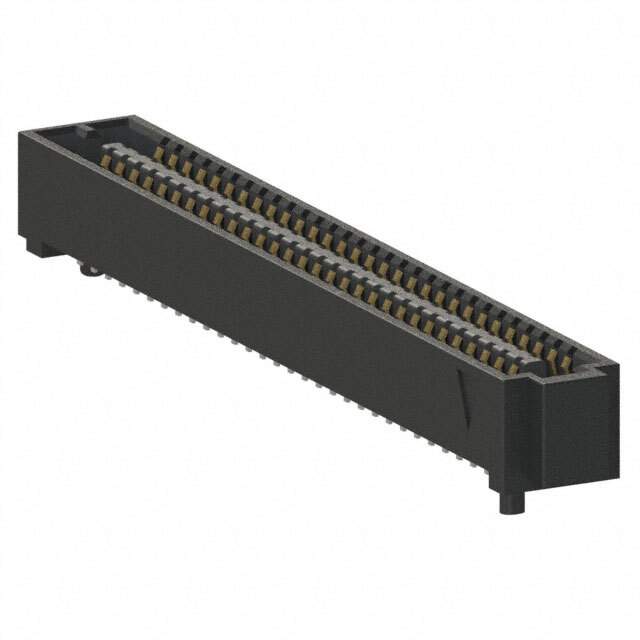

SEAF-30-05.0-S-04-1-A-K-TR

Name: SEAF-30-05.0-S-04-1-A-K-TR
Brand: Samtec Inc.
SKU: 1293797
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SEAF-30-05.0-S-04-1-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-30-05.0-S-04-1-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	High Density Array, Female
Number of Positions	120
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-30
Other Names	SAM14332TR,SAM14332DKRINACTIVE,SAM14332DKR,SEAF-30-05.0-S-04-1-A-K-TR,SAM14332DKR,SAM14332CT
Standard Package	375
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293797-SEAF-30-05.0-S-04-1-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-30-05.0-S-04-1-A-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. 1293797-SEAF-30-05.0-S-04-1-A-K-TR is a rectangular connector with arrays, edge type, mezzanine (board to board).

Number of Positions: 120
Pitch: 0.050 inches
Connector Type: High density array, female
Rows: 4
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Package: Tape & reel (TR), cut tape (CT)
Standard Package: 375 connectors
Mounting Style: SMD (SMT)
Height Above Board: 0.199 inches (5.05mm)
MSL Level: 1 (Unlimited)
REACH: Affected
HTSUS: 8536.69.4040
RoHS: Non-compliant
