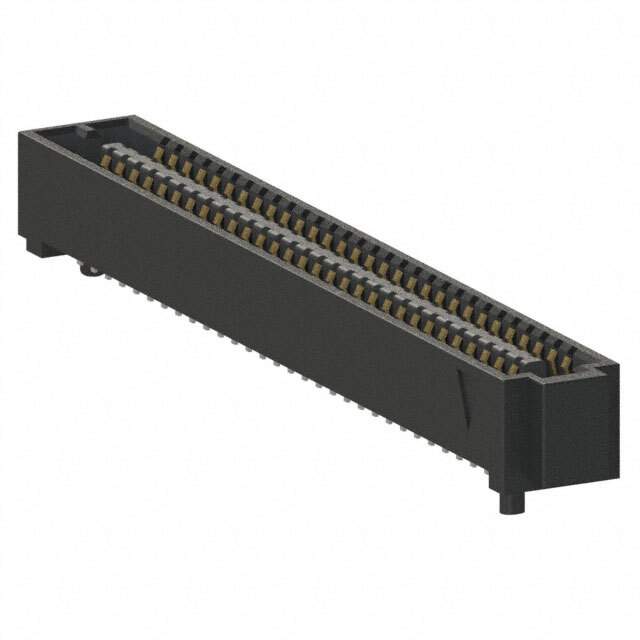

SEAF-30-05.0-L-04-2-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-30-05.0-L-04-2-A-K-TR

Part No SEAF-30-05.0-L-04-2-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-30-05.0-L-04-2-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type High Density Array, Female
Number of Positions 120
Pitch 0.050" (1.27mm)
Number of Rows 4
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board 0.199" (5.05mm)
Base Product Number SEAF-30
Other Names SEAF-30-05.0-L-04-2-A-K-FR,SAM14326DKR,SEAF-30-05.0-L-04-2-A-K-TR,SAM14326DKR,SAM14326DKRINACTIVE,SAM14326CT,SAM14326TR
Standard Package 375
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293793-SEAF-30-05.0-L-04-2-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-05.0-L-04-2-A-K-TR CAD Model

Description

The SEARAY™ SEAF high-density array female connector is perfect for board-to-board applications.

  • Pitch: 0.050 inches (1.27mm)
  • Number of Positions: 120
  • Rows: 4
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Features: Board guide and pick-and-place features
  • Package: Tape and reel or cut tape
  • Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
  • Height Above Board: 0.199 inches (5.05mm)
  • Mounting: SMD (SMT)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Manufacturer: Samtec Inc.
