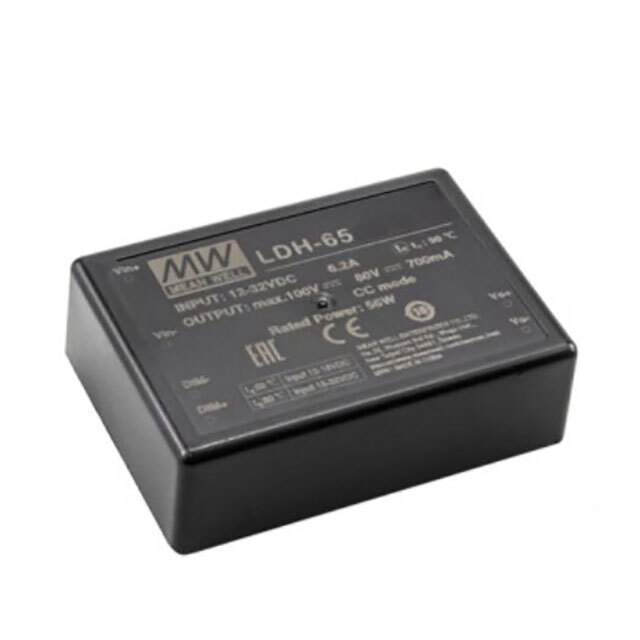

LDH-65-1400 Real Image
Same model may have multiple batches, images only for reference.

LDH-65-1400

Part No LDH-65-1400
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description DC-DC STEP-UP CONSTANT CURRENT L / 1.4A 12.5 ~ 46V Constant Current LED Driver Boost Topology 1 Output
Datasheet
LDH-65-1400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>LED Drivers
Mfr MEAN WELL USA Inc.
Series LDH-65 (65W)
Package Box
Type Constant Current
Topology Boost
Number of Outputs 1
Voltage - Input (Min) 9.5V
Voltage - Input (Max) 32V
Voltage - Output 12.5 ~ 46V
Current - Output (Max) 1.4A
Power (Watts) 64 W
Dimming Analog, PWM
Features OVP, SCP
Temperature Range - Operating -40°C ~ 60°C
Efficiency 95%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm)
Approval Agency CE, EAC
Base Product Number LDH-65
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-LDH-65-1400
Standard Package 100
Win Source Part Number 1069224-LDH-65-1400
Ultra Librarian 3D Model Ultra Librarian LDH-65-1400 CAD Model

Description

The MEAN WELL USA Inc. LDH-65-1400 is a 65W electronic component used in power supplies and LED drivers.

  • Topology: Boost
  • Current Type: Constant Current
  • Win Source Part Number: 1069224-LDH-65-1400
  • Voltage Output: 12.5 ~ 46V
  • Dimming Feature: Analog and PWM
  • Efficiency: 95 percent
  • Features: OVP and SCP
  • Package Type: 6-DIP Module
  • Dimensions: 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm)
  • Manufacturer Website: www.meanwell.com
