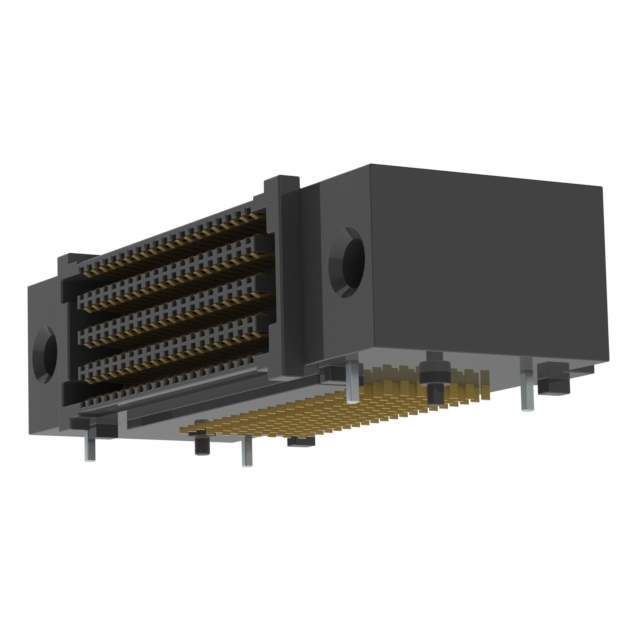

SEAF-20-01-L-08-2-RA-GP-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-20-01-L-08-2-RA-GP-TR

Part No SEAF-20-01-L-08-2-RA-GP-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-20-01-L-08-2-RA-GP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 160
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting Type Surface Mount, Right Angle
Features Board Guide, Mating Flange
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Height Above Board 0.511" (12.99mm)
Base Product Number SEAF-20
Standard Package 75
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293721-SEAF-20-01-L-08-2-RA-GP-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-20-01-L-08-2-RA-GP-TR CAD Model

Description

The Samtec Inc. SEAF series is a 160-position high density array female connector with a right-angle surface mount mounting type.

  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Package: Tape and reel
  • Height Above Board: 0.511" (12.99mm)
  • Suitable For: Edge type, mezzanine (board-to-board) applications
