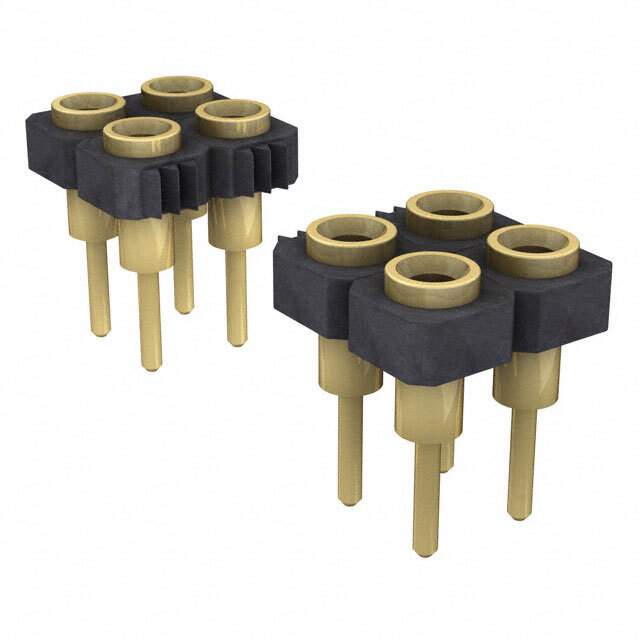

SDL-126-G-11 Real Image
Same model may have multiple batches, images only for reference.

SDL-126-G-11

Part No SDL-126-G-11
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-126-G-11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 52
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.132" (3.35mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-126
Other Names SAM1134-26
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292954-SDL-126-G-11
Ultra Librarian 3D Model Ultra Librarian SDL-126-G-11 CAD Model

Description

This female socket receptacle is designed for use in board-to-board applications.

  • Series: SDL
  • Fastening Type: Push-pull
  • Positions: 52
  • Sockets: All female sockets
  • Rows: Two
  • Termination: Solder
  • Contact Material: Beryllium copper
  • Contact Finish: Gold
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Color: Black
  • Mounting: Through hole
  • Row Spacing: 0.100 inches (2.54mm)
  • Contact Length of Post: 0.108 inches (2.75mm)
  • Insulation Height: 0.132 inches (3.35mm)
  • Contact Shape: Circular
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Samtec Inc.
