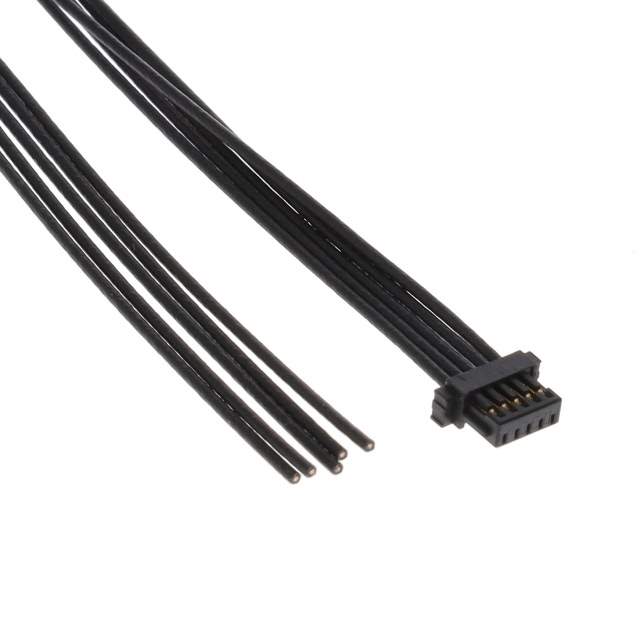

S1SS-05-28-GF-20.00-S Real Image
Same model may have multiple batches, images only for reference.

S1SS-05-28-GF-20.00-S

Part No S1SS-05-28-GF-20.00-S
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
S1SS-05-28-GF-20.00-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series S1SS
Package Bulk
Connector Type Socket to Individual Wire Leads
Number of Positions 5
Number of Rows 1
Pitch - Connector 0.039" (1.00mm)
Length 1.67' (508.00mm)
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Base Product Number S1SS-05
Other Names SAM11655,S1SS-05-28-GF-20.00-S
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1312784-S1SS-05-28-GF-20.00-S
Ultra Librarian 3D Model Ultra Librarian S1SS-05-28-GF-20.00-S CAD Model

Description

The Samtec Inc. S1SS-05-28-GF-20.00-S is a rectangular cable assembly that belongs to the S1SS series.

  • Connector Type: Socket to Individual Wire Leads
  • Pitch Connector: 0.039” (1.00mm)
  • Length: 1.67’ (508.00mm)
  • Shielding: Shielded
  • Color: Black
  • Contact Finish: Gold
