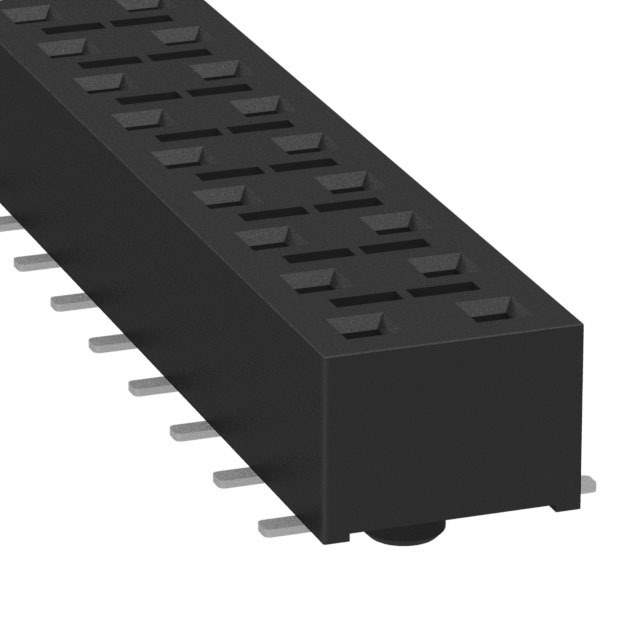

The HLE-112-02-S-DV-BE-A is a HLE series rectangular connector used for headers, receptacles, and female sockets. Samtec Inc. manufactures the HLE-112-02-S-DV-BE-A.

• Positions: 24
• Board Guide: Yes
• Connector Type: Receptacle with Bottom Entry
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tube
• Contact Material: Beryllium Copper
• Voltage Rating: 400VAC
• Mated Stacking Heights: None
• Ingress Protection: No
• Material Flammability Rating: Not Specified
• Applications: Not Specified
• Standard Package: 19
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Board
• Pitch Mating: 0.100" (2.54mm)
• Contact Finish Mating: Gold
• Contact Finish Thickness Mating: 30.0μin (0.76μm)
• Contact Finish Post: Tin
• Insulation Color: Black
• Mounting Type: Surface Mount
• Row Spacing Mating: 0.100" (2.54mm)
• Insulation Height: 0.144" (3.66mm)
• Contact Shape: Square
• Temperature Range: -55°C ~ 125°C
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• Current Rating (Amps): 4.1A per Contact
• HTSUS Code: 8536.69.4040
