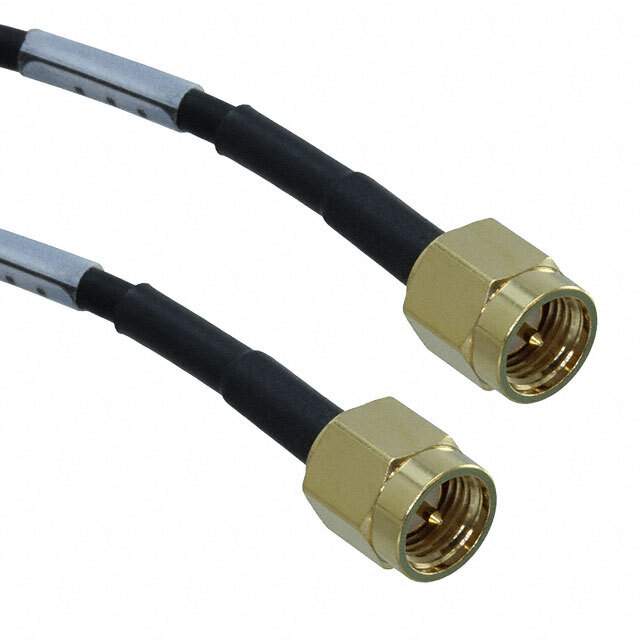

RF174-01SP1-01SP1-1000 Real Image
Same model may have multiple batches, images only for reference.

RF174-01SP1-01SP1-1000

Part No RF174-01SP1-01SP1-1000
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF)
Description MICRO RF CABLE ASSEMBLY / Cable Assembly Coaxial SMA to SMA RG-174 39.4" (1.0m) 3.3'
Datasheet
RF174-01SP1-01SP1-1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Samtec Inc.
Series RF174
Package Bag
Style SMA to SMA
1st Connector SMA Plug
1st Contact Gender Male
1st Connector Mounting Type Free Hanging (In-Line)
2nd Connector SMA Plug
2nd Contact Gender Male
2nd Connector Mounting Type Free Hanging (In-Line)
Length 39.4" (1.0m) 3.3'
Cable Type RG-174
Cable Impedance 50 Ohms
Overall Impedance 50 Ohms
Frequency - Max 6 GHz
Color Black
Temperature Range - Operating -50°C ~ 90°C
Base Product Number RF174-01
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.20.0000
Other Names RF174-01SP1-01SP1-1000-ND,SAM13062
Standard Package 1
Win Source Part Number 1011503-RF174-01SP1-01SP1-1000
Ultra Librarian 3D Model Ultra Librarian RF174-01SP1-01SP1-1000 CAD Model

Description

This electronic component is a black colored coaxial cable assembly with an RG-174 cable type and an SMA to SMA style. It is manufactured by Samtec Inc.

  • Cable Type: RG-174
  • Style: SMA to SMA
  • Length: 39.4 inches (1.0m)
  • Frequency - Max: 6 GHz
  • Series: RF174
  • Win Source Part Number: 1011503-RF174-01SP1-01SP1-1000
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • Color: Black
