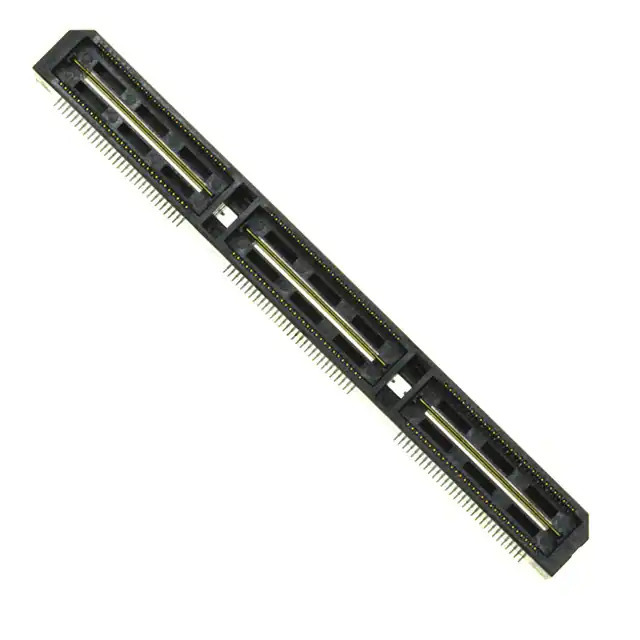

QTH-090-02-L-D-A

Name: QTH-090-02-L-D-A
Brand: Samtec Inc.
SKU: 1364591
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	QTH-090-02-L-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 180POS SMD GOLD / 180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	QTH-090-02-L-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Q Strip® QTH
Package	Tray
Product Status	Active
Connector Type	Header, Outer Shroud Contacts
Number of Positions	180
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	8mm
Height Above Board	0.286" (7.26mm)
Base Product Number	QTH-090
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364591-QTH-090-02-L-D-A
Ultra Librarian 3D Model	Ultra Librarian QTH-090-02-L-D-A CAD Model

Description

The Q Strip QTH-090-02-L-D-A is a rectangular connector array designed for board-to-board interconnects and manufactured by Samtec Inc.

Number of Positions: 180
Number of Rows: 2
Pitch: 0.020" (0.50mm)
Height Above Board: 0.286" (7.26mm)
Mounting Type: Surface Mount
Series: Q Strip QTH
Features: Board Guide, Ground Bus (Plane)
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Product Status: Active
REACH: Compliant
ECCN: EAR99
