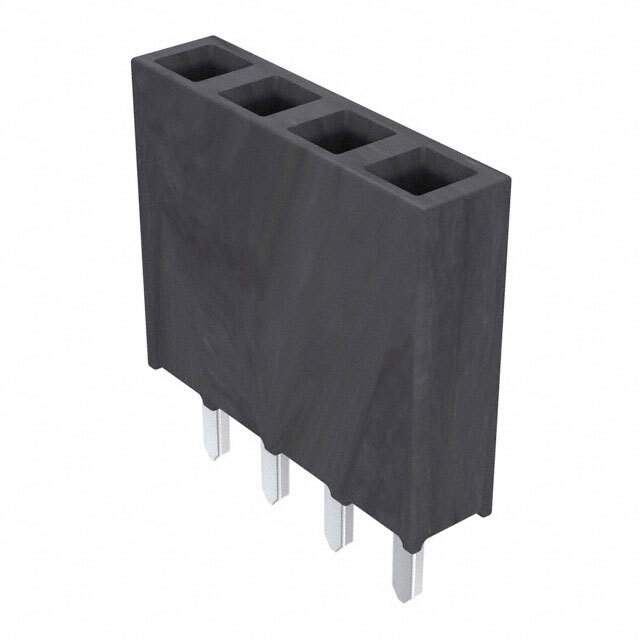

Same model may have multiple batches, images only for reference.

SSW-104-01-T-S

Name: SSW-104-01-T-S
Brand: Samtec Inc.
SKU: 808650
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSW-104-01-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS 0.1 TIN PCB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.104" (2.64mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	5.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Manufacturer Pack Quantity	1
MSL Level	Not Applicable
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	808651-SSW-104-01-T-S
Ultra Librarian 3D Model	Ultra Librarian SSW-104-01-T-S CAD Model

Description

The 808651-SSW-104-01-T-S connector from Samtec Inc. is a through-hole receptacle device.

Connector Type: Receptacle
Contact Type: Forked
Positions: 4
Rows: 1
Termination: Solder
Fastening Type: Push-Pull
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Temperature Range: -55°C ~ 105°C
Insulation Height: 0.335" (8.51mm)
Contact Shape: Square
Contact Length-Post: 0.104" (2.64mm)
