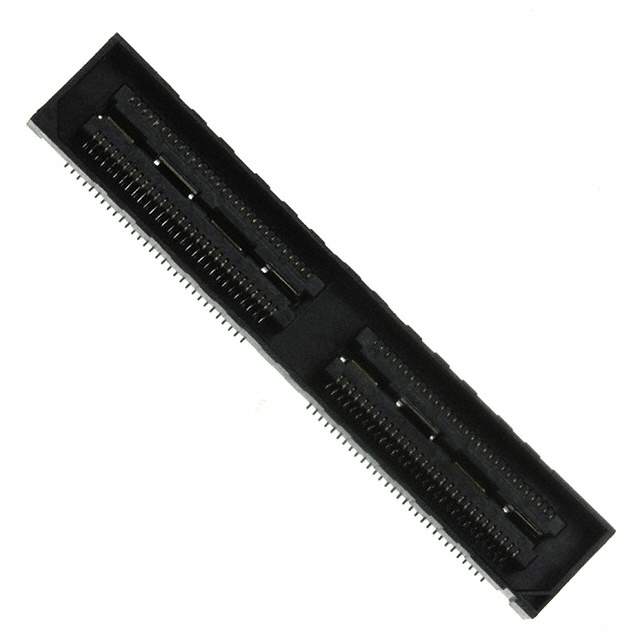

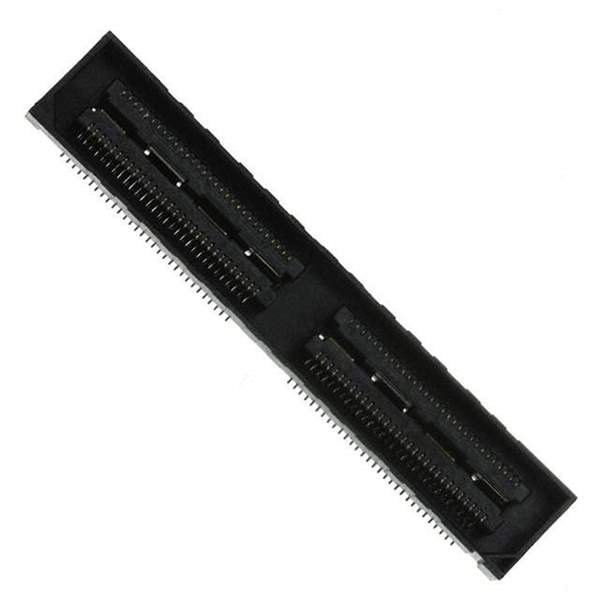

QSH-060-01-L-D-A

Name: QSH-060-01-L-D-A
Brand: Samtec Inc.
SKU: 808861
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	QSH-060-01-L-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS SMD GOLD / .5mm DOUBLE ROW HS SOCKET ASSEMBLY
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Tray
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	120
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Style	SMD
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	10.0μin (0.25μm)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board	0.128" (3.25mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	808862-QSH-060-01-L-D-A
Ultra Librarian 3D Model	Ultra Librarian QSH-060-01-L-D-A CAD Model

Alternative Products

Description

The Samtec Inc. QSH-060-01-L-D-A is a receptacle center strip contacts connector with 120 positions and a pitch of 0.020" (0.50mm).

Positions: 120
Pitch: 0.020" (0.50mm)
Contact Finish: Gold
Contact Finish Thickness: 10.0μin (0.25μm)
Packaging: Tray
Height Above Board: 0.128" (3.25mm)
Features: Board Guide, Ground Bus (Plane)
Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 1
MSL Level: 1 (Unlimited)
