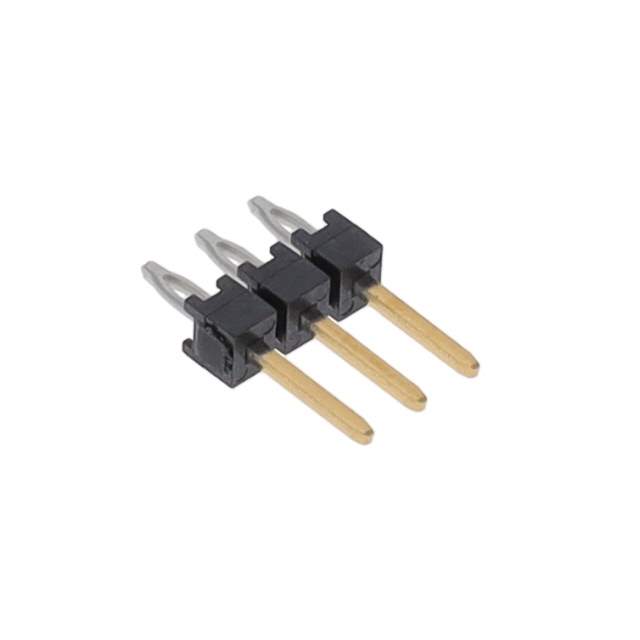

PHT-103-01-L-S

Name: PHT-103-01-L-S
Brand: Samtec Inc.
SKU: 459271
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PHT-103-01-L-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.100 PRESS FIT SOCKET ASSEMBLY
Datasheet	PHT-103-01-L-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Press-Fit, Solder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.122" (3.10mm)
Overall Contact Length	0.452" (11.48mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C to 125°C
Insulation Color	Black
Current Rating	4.8A per Contact
Win Source Part Number	1044154-PHT-103-01-L-S
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PHT-103-01-L-S CAD Model

Description

The Samtec Inc. PHT-103-01-L-S is a board-to-board style connector with 3 positions and male pin contact type.

Positions: 3
Contact Type: Male Pin
Pitch-Mating: 2.54mm
Contact Finish-Mating: Gold
Contact Finish Thickness: 10μin (0.25μm)
Mounting Type: Through Hole
Termination: Press-Fit, Solder
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Current Rating: 4.8A per contact
Shrouded: Unshrouded
Operating Temperature: -55°C to 125°C
Packaging: Tube/Rail
