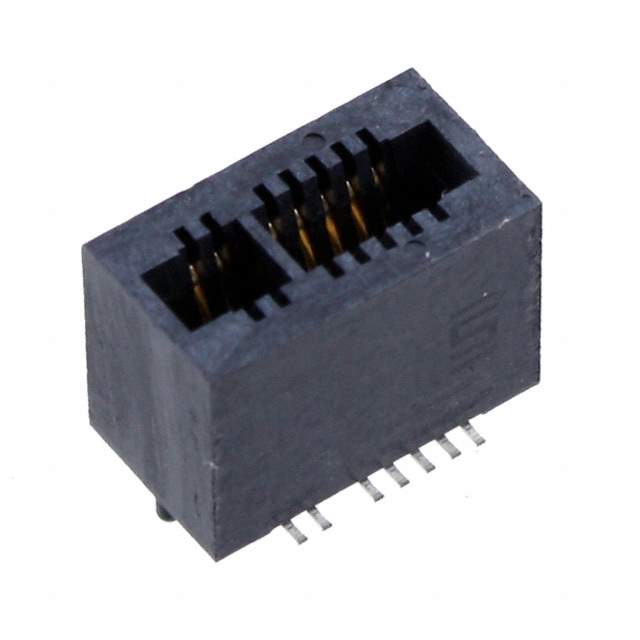

MEC1-108-02-S-D-A Real Image
Same model may have multiple batches, images only for reference.

MEC1-108-02-S-D-A

Part No MEC1-108-02-S-D-A
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 16POS 0.039 / 16 Position Female Connector Non Specified - Dual Edge Gold 0.039" (1.00mm) Black
Datasheet
MEC1-108-02-S-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series MEC1
Package Tube
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 16
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide
Mounting SMD (SMT)
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Loop Bellows
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number MEC1-108
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM8116,MEC110802SDA
Standard Package 43
Win Source Part Number 1056785-MEC1-108-02-S-D-A
Ultra Librarian 3D Model Ultra Librarian MEC1-108-02-S-D-A CAD Model

Description

Samtec Inc.'s MEC1-108-02-S-D-A card edge connector is a reliable and efficient choice for those looking for a high-quality connector.

  • Positions: With 16 positions
  • Pitch: and a pitch of 0.039" (1.00mm)
  • Card Type: this connector has a dual edge card type
  • Series: and is part of the MEC1 series.
  • Color: It has a black color
  • Feature: and features a board guide.
  • Benefit: It is a great choice for those looking for a reliable and efficient card edge connector.
