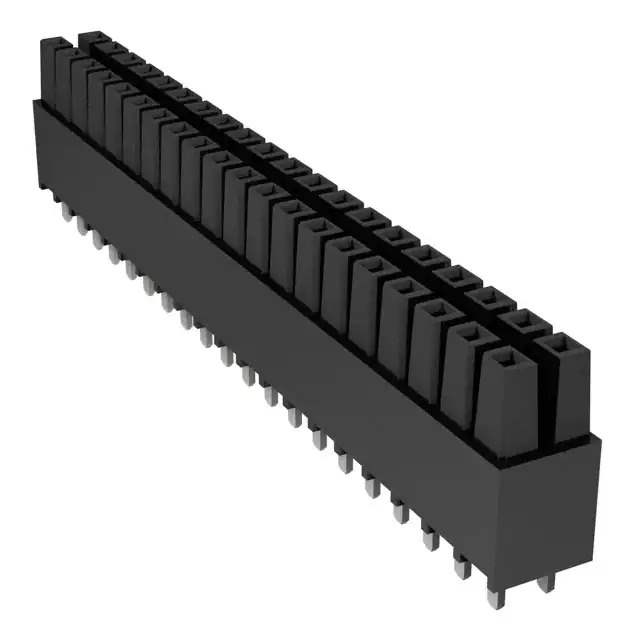

IPS1-120-01-S-D

Name: IPS1-120-01-S-D
Brand: Samtec Inc.
SKU: 921350
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPS1-120-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 40POS 0.1 GOLD PCB / 40 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	IPS1-120-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Mini Mate® IPS1
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	40
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Voltage Rating	775VAC, 1095VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	IPS1-120
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	921350-IPS1-120-01-S-D
Ultra Librarian 3D Model	Ultra Librarian IPS1-120-01-S-D CAD Model

Description

The 921350-IPS1-120-01-S-D is a rectangular connector from the Mini Mate® IPS1 series by Samtec Inc..

Series: Mini Mate® IPS1
Connector Type: Receptacle
Number of Positions: 40
Number of Rows: 2
Positions Loaded: All
Termination: Solder
Fastening Type: Push-pull
Contact Material: Phosphor bronze
Contact Finish (Mating): Gold with a thickness of 30.0μin
Contact Finish (Post): Tin
Insulation Material: Black liquid crystal polymer (LCP)
Height: 0.335" (8.51mm)
Pitch: 0.100" (2.54mm)
Voltage Rating: 775VAC and 1095VDC
Mounting: Through-hole
Row Spacing: 0.100" (2.54mm)
Package: Bulk
Standard Package Quantity: 1 pc
