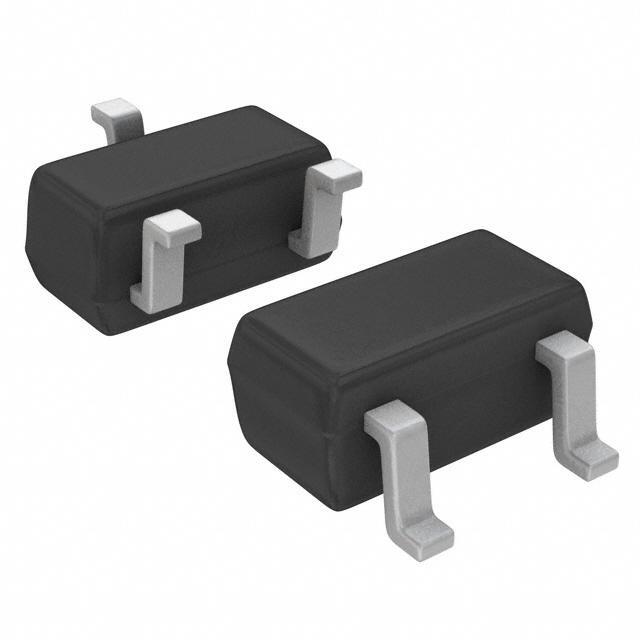

RCLAMP0502B.TCT

Name: RCLAMP0502B.TCT
Brand: Semtech Corporation
SKU: 291344
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RCLAMP0502B.TCT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 25VC SC75
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Not For New Designs
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6V
Max Clamping Voltage	25V
Peak Pulse Current(Ippm)	5A (8/20μs)
Power Dissipation - Pd	125W
Applications	HDMI, RF Antenna
Capacitance @ Frequency	1.2pF @ 1MHz
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SC-75 (SOT523)
Win Source Part Number	027225-RCLAMP0502B.TCT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, RF Communications, Sensing & Instrumentation, Power Management, Industrial, Multimedia
Ultra Librarian 3D Model	Ultra Librarian RCLAMP0502B.TCT CAD Model

Description

The Semtech Corporation Zener Diode is a high-performance circuit protection solution designed for use in HDMI and RF antenna applications.

Maximum Clamping Voltage: 25V
Peak Pulse Current: 5A
Popularity: high demand
Common Applications: computers and computer peripherals, communications and networking, imaging, video and vision, RF communications, sensing and instrumentation, power management, and industrial systems
