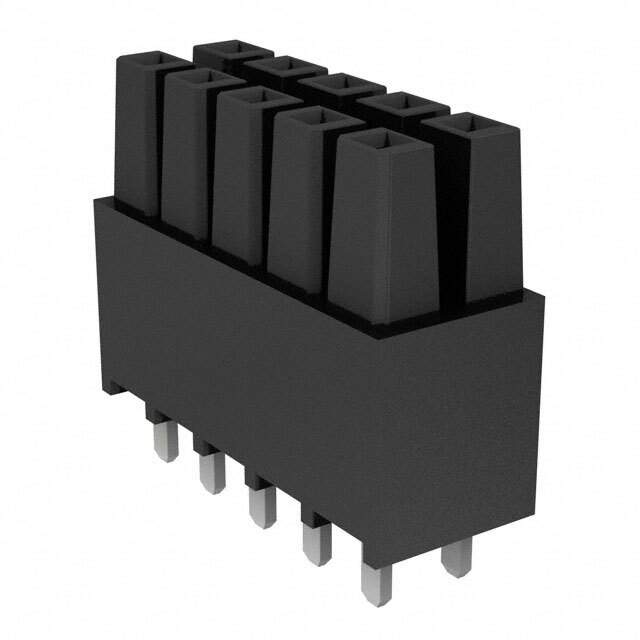

IPS1-105-01-S-D

Part No IPS1-105-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 10POS 0.1 GOLD PCB  /  10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
IPS1-105-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Mini Mate® IPS1
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Voltage Rating 775VAC, 1095VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number IPS1-105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM8085
Standard Package 1
Win Source Part Number 978250-IPS1-105-01-S-D
Ultra Librarian 3D Model Ultra Librarian IPS1-105-01-S-D CAD Model

Description

The Mini Mate® IPS1 series connector is a rectangular connector with a receptacle type connector.

  • Connector Type: Rectangular
  • Receptacle Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 775VAC, 1095VDC
  • Fastening Type: Push-Pull
  • Packaging: Bulk
  • Pitch Mating: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Mounting Type: Through Hole
  • Number of Rows: 2
  • Temperature Range: -55°C ~ 125°C
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Shape: Square
  • Insulation Height: 0.335" (8.51mm)
  • Application Style: Board to Board
