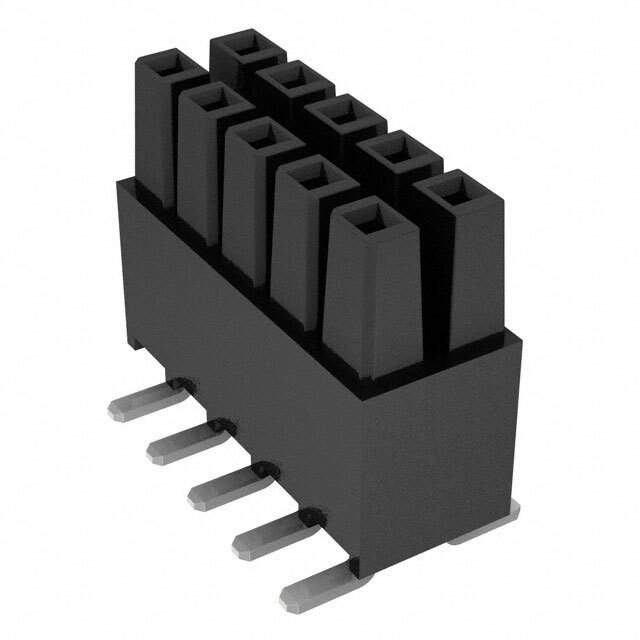

IPS1-105-01-S-D-VS Real Image
Same model may have multiple batches, images only for reference.

IPS1-105-01-S-D-VS

Part No IPS1-105-01-S-D-VS
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT .100" 10POS DL PCB SMD / Conn Isolated Power Socket Strip SKT 10 POS 2.54mm Solder ST SMD 10 Terminal 1 Port Tube
Datasheet
IPS1-105-01-S-D-VS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series Mini Mate IPS1
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Operating Temperature Range -55°C ~ 125°C
Contact Finish - Post Tin
Voltage Rating 775VAC, 1095VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Win Source Part Number 776928-IPS1-105-01-S-D-VS
Popularity Medium
Supply and Demand Status Limited
Family Name IPS1
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian IPS1-105-01-S-D-VS CAD Model

Description

The Mini Mate IPS1 connector is a board-to-board style connector with a pitch of 0.100" (2.54mm) and a square contact shape.

  • Pitch: 0.100" (2.54mm)
  • Contact Shape: Square
  • Package Type: Tube
  • Positions: 10
  • Contact Type: Female Socket
  • Operating Temperature Range: -55°C to 125°C
  • Contact Finish-Mating: Gold (30μin (0.76μm))
  • Contact Finish-Post: Tin
  • Compliance: Halogen-free
  • Estimated EOL Date: 2029
  • Manufacturer: Samtec Inc.
  • ECCN: EAR99
