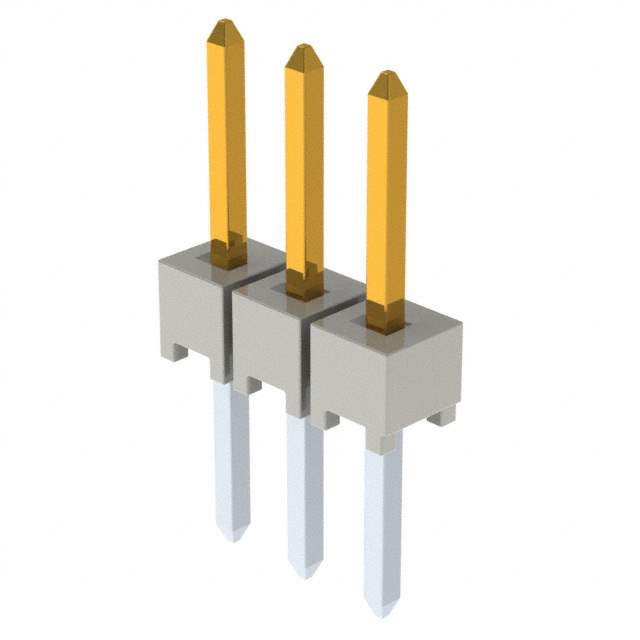

HTSW-103-08-LM-S

Name: HTSW-103-08-LM-S
Brand: Samtec Inc.
SKU: 809505
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HTSW-103-08-LM-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.200" (5.08mm)
Overall Contact Length	0.530" (13.46mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809506-HTSW-103-08-LM-S
Ultra Librarian 3D Model	Ultra Librarian HTSW-103-08-LM-S CAD Model

Alternative Products

Description

The HTSW-103-08-LM-S is a board to board or cable header connector manufactured by Samtec Inc.

Positions: 3
Mounting Type: Through Hole
Contact Type: Male Pin
Termination: Solder
Voltage Rating: -
Insulation Material: Liquid Crystal Polymer (LCP)
