HTSW-103-07-L-D-LL
Same model may have multiple batches, images only for reference.

HTSW-103-07-L-D-LL

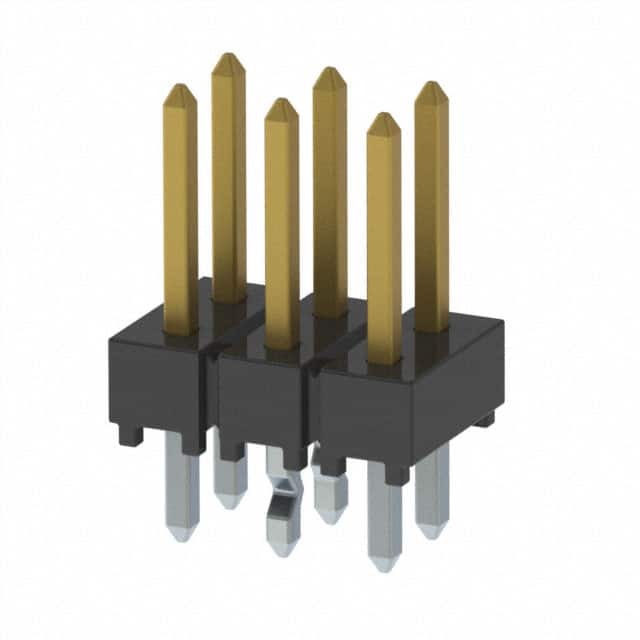

Part No HTSW-103-07-L-D-LL
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Datasheet
HTSW-103-07-L-D-LL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series HTSW
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.100" (2.54mm)
Overall Contact Length 0.430" (10.92mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Base Product Number HTSW-103
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 874001-HTSW-103-07-L-D-LL
Ultra Librarian 3D Model Ultra Librarian HTSW-103-07-L-D-LL CAD Model

Description

The 874001-HTSW-103-07-L-D-LL is a rectangular connector header manufactured by Samtec Inc.

  • Series: HTSW
  • Positions: 6 positions
  • Fastening Type: Push-pull
  • Mounting Type: Through-hole
  • Contact Type: Male pin
  • Positions Loaded: All
  • Rows: Two rows
  • Pitch: 0.100 inches (2.54mm)
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Contact Finish Thickness for Mating: 10.0µin (0.25µm)
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Color: Natural
  • Application: Board to board or cable connections
  • Operating Temperature Range: -55°C to 125°C
