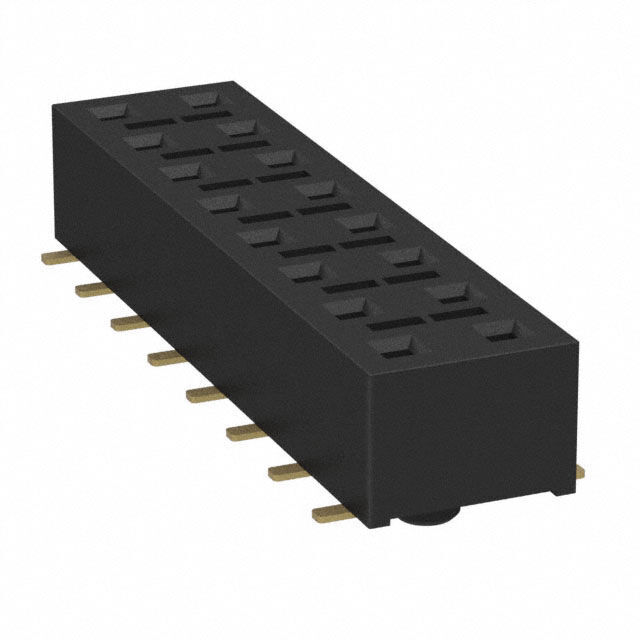

HLE-108-02-G-DV-BE-A Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HLE-108-02-G-DV-BE-A

Part No HLE-108-02-G-DV-BE-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 16POS 0.1 GOLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsRectangular ConnectorsHeaders, Receptacles, Female Sockets
Mfr Samtec Inc.
Series HLE
Packaging Tube
Part Status Active
Connector Type Receptacle, Bottom Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0μin (0.51μm)
Insulation Color Black
Insulation Height 0.144" (3.66mm)
Operating Temperature -55°C ~ 125°C
Contact Finish - Post Gold
Features Board Guide
Current Rating (Amps) 4.1A per Contact
Voltage Rating 400VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Contact Finish Thickness - Post 3.00μin (0.076μm)
Base Product Number HLE-108
Ultra Librarian 3D Model Ultra Librarian HLE-108-02-G-DV-BE-A CAD Model
