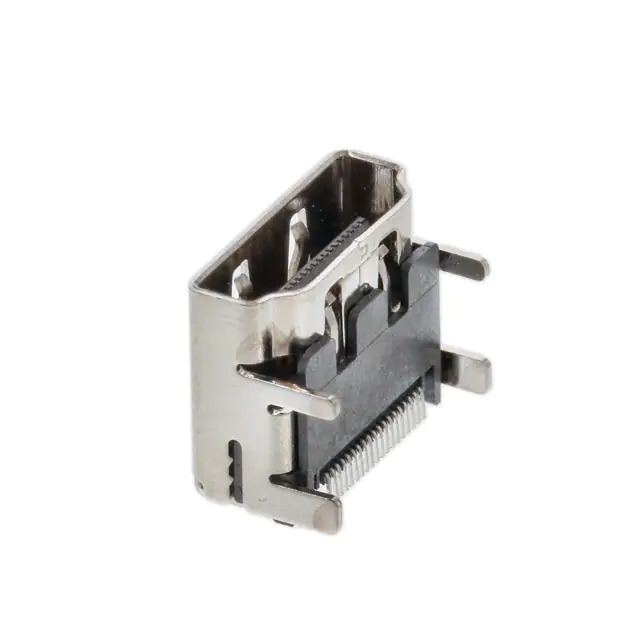

HDMR-19-01-F-SM Samtec Inc.
Same model may have multiple batches, images only for reference.

HDMR-19-01-F-SM

Part No HDMR-19-01-F-SM
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT HDMI 19POS SMD R/A / HDMI Receptacle Connector 19 Position Surface Mount, Right Angle
Datasheet
HDMR-19-01-F-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Samtec Inc.
Series -
Package Bulk
Product Status Active
Connector Type HDMI
Number of Contacts 19
Gender Receptacle
Specifications -
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide
Ingress Protection -
Temperature Range - Operating -25°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1.3A per Contact
Voltage - Rated 40VAC
Mating Cycles 100
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Brass
Material Flammability Rating -
Insulation Color -
Base Product Number HDMR-19
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1356803-HDMR-19-01-F-SM
Ultra Librarian 3D Model Ultra Librarian HDMR-19-01-F-SM CAD Model

Description

The Samtec Inc. HDMI Connector Assembly is a surface mount, right angle connector with a voltage rating of 40VAC.

  • Voltage Rating: 40VAC
  • Current Rating per Contact: 1.3A
  • Shielding: Shielded
  • Connector Type: HDMI
  • Termination: Solder
  • Mounting Feature: Horizontal
  • Gender: Receptacle
  • Number of Contacts: 19
  • Number of Ports: 1
  • Shell/Shielding Material: Brass
  • Operating Temperature: -25°C ~ 85°C
  • Flammability Rating: UL94 V-0
