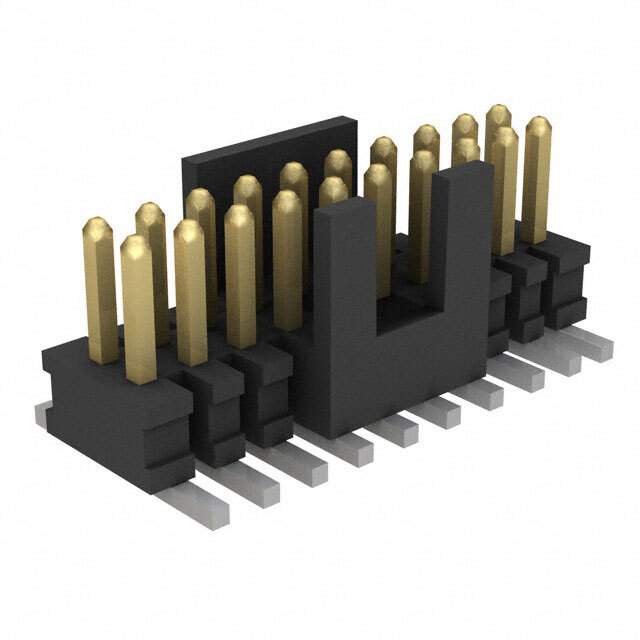

Same model may have multiple batches, images only for reference.

FTSH-110-01-F-DV-K-P

Name: FTSH-110-01-F-DV-K-P
Brand: Samtec Inc.
SKU: 982654
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTSH-110-01-F-DV-K-P
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Datasheet	FTSH-110-01-F-DV-K-P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Shroud, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-110
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM9453
Standard Package	46
Win Source Part Number	982654-FTSH-110-01-F-DV-K-P
Ultra Librarian 3D Model	Ultra Librarian FTSH-110-01-F-DV-K-P CAD Model

Alternative Products

Description

The FTSH-110-01-F-DV-K-P is a rectangular connector header with male pins. FTSH-110-01-F-DV-K-P.

Pitch: 0.050" (1.27mm)
Current Rating: 3.4A per contact
Package: Tube
Operating Temperature: -55°C ~ 125°C
Connector Type: Board-to-Board or Cable
Style: Shrouded
Feature: Pick and Place
Contact Finish: Gold
Contact Finish Thickness: 3.00µin (0.076µm)
Insulation Material: Liquid Crystal Polymer (LCP)
