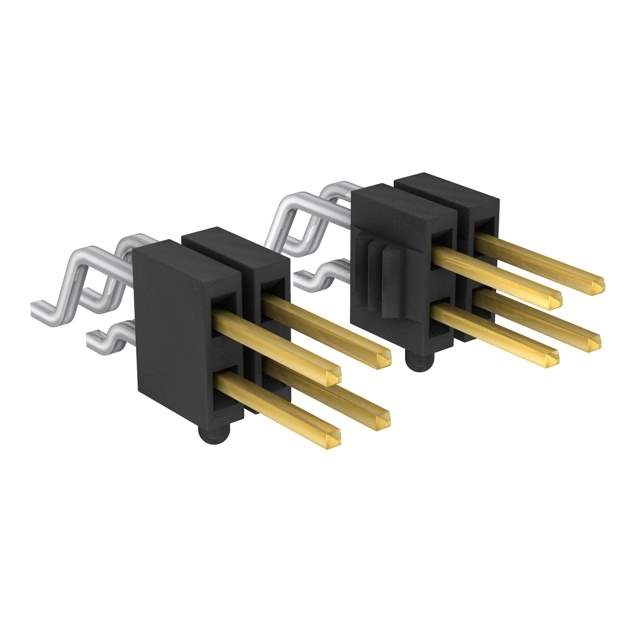

FTSH-105-01-L-DH-A Real Image
Same model may have multiple batches, images only for reference.

FTSH-105-01-L-DH-A

Part No FTSH-105-01-L-DH-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description .050" X .050 TERMINAL STRIP / Conn Unshrouded Header HDR 10 POS 1.27mm Solder RA SMD Layer
Datasheet
FTSH-105-01-L-DH-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series FTSH
Packaging Tube
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Surface Mount, Right Angle
Termination Solder
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.135" (3.43mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3.3A per Contact
Win Source Part Number 768492-FTSH-105-01-L-DH-A
Popularity Medium
Supply and Demand Status Balance
Family Name FTSH
Introduction Date September 18, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian FTSH-105-01-L-DH-A CAD Model

Description

The Samtec Inc. FTSH Series is a header, cuttable connector type that is designed for board-to-board or cable applications.

  • Mounting Style: Surface Mount, Right Angle
  • Shrouded: Unshrouded
  • Rows: Two
  • Pitch-Mating: 0.050" (1.27mm)
  • Contact Finish-Mating: Gold
  • Contact Finish-Post: Tin
  • Current Rating: 3.3A per contact
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Material Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • Operating Temperature: -55°C to 125°C
