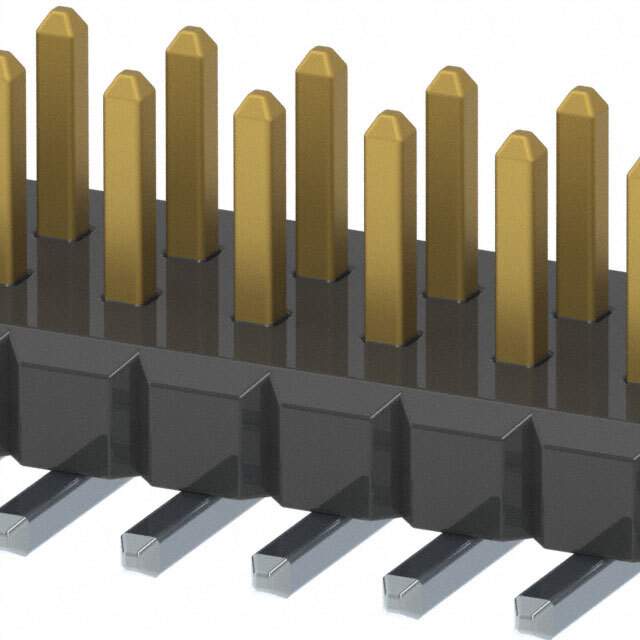

Same model may have multiple batches, images only for reference.

FTM-146-03-L-DV-P

Name: FTM-146-03-L-DV-P
Brand: Samtec Inc.
SKU: 1124060
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTM-146-03-L-DV-P
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 92POS 1MM / Connector Header Surface Mount 92 position 0.039" (1.00mm)
Datasheet	FTM-146-03-L-DV-P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTM
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	92
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.065" (1.65mm)
Insulation Height	0.038" (0.97mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	2.8A per Contact
Base Product Number	FTM-146
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	12
Win Source Part Number	1124060-FTM-146-03-L-DV-P
Ultra Librarian 3D Model	Ultra Librarian FTM-146-03-L-DV-P CAD Model

Alternative Products

Description

The Samtec Inc. FTM-146-03-L-DV-P is a connector that is part of the FTM series.

Positions: 92
Features: pick and place technology
Connector Type: header
Cuttable: yes
Contact: male pin
Loaded: all positions
Rows: two
Termination: solder
Fastening: push-pull
Package: tube
Contact Material: phosphor bronze
Shrouding: unshrouded
Row Spacing for Mating: 0.039 inches
Contact Finish (Mating): gold
Contact Finish Thickness (Mating): 10.0μin (0.25μm)
Contact Finish (Post): tin
Insulation Color: black
Contact Shape: square
Operating Temperature: -55°C to 125°C
