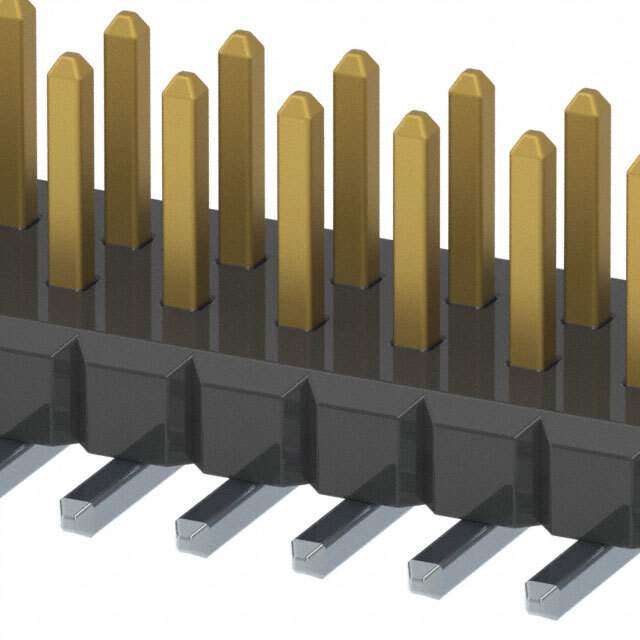

Same model may have multiple batches, images only for reference.

FTM-113-02-F-DV

Name: FTM-113-02-F-DV
Brand: Samtec Inc.
SKU: 1137571
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTM-113-02-F-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 26POS 1MM / Connector Header Surface Mount 26 position 0.039" (1.00mm)
Datasheet	FTM-113-02-F-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTM
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.075" (1.90mm)
Insulation Height	0.038" (0.97mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	2.8A per Contact
Base Product Number	FTM-113
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	44
Win Source Part Number	1137571-FTM-113-02-F-DV
Ultra Librarian 3D Model	Ultra Librarian FTM-113-02-F-DV CAD Model

Alternative Products

Description

The FTM series header connector is a board-to-board connector that is cuttable and has 26 positions.

Positions: 26
Contact Type: male pin
Termination: solder
Shrouded: unshrouded
Fastening Type: push-pull
Contact Material: phosphor bronze
Insulation Material: liquid crystal polymer (LCP)
Pitch Mating: 0.039-inch
Contact Finish: gold
Contact Finish Thickness (Mating): 3.00μin (0.076μm)
Contact Finish Thickness (Post): Tin
Temperature Range: -55°C to 125°C
RoHS: compliant
