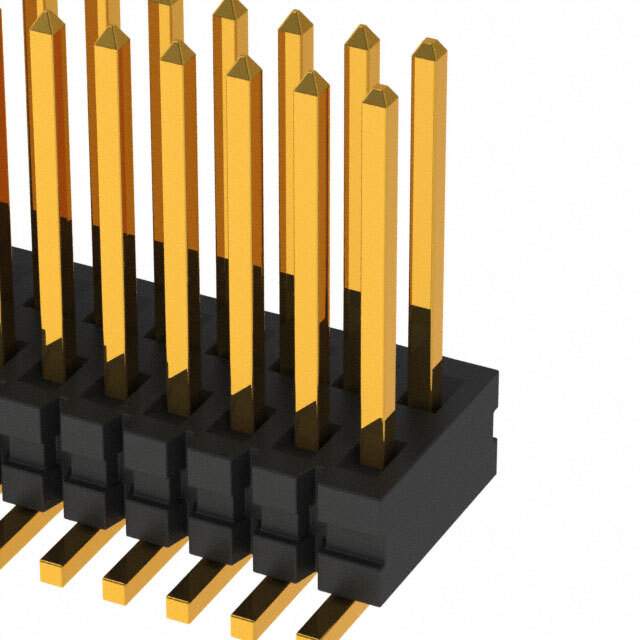

Same model may have multiple batches, images only for reference.

FTE-164-01-G-DV

Name: FTE-164-01-G-DV
Brand: Samtec Inc.
SKU: 1140090
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	FTE-164-01-G-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 128POS 0.8MM / Connector Header Surface Mount 128 position 0.031" (0.80mm)
Datasheet	FTE-164-01-G-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTE
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.031" (0.80mm)
Number of Positions	128
Number of Rows	2
Row Spacing - Mating	0.047" (1.20mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.075" (1.90mm)
Insulation Height	0.055" (1.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.7A per Contact
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	FTE-164
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1144-64
Standard Package	1
Win Source Part Number	1140090-FTE-164-01-G-DV
Ultra Librarian 3D Model	Ultra Librarian FTE-164-01-G-DV CAD Model

Description

The FTE series header connector from Samtec Inc. is a board-to-board style connector with a pitch of 0.031 inches (0.80mm).

Connector Style: Board-to-Board
Pitch: 0.031 inches (0.80mm)
Positions Loaded: 128
Rows: 2
Termination: Solder
Contact Material: Phosphor Bronze
Mating Finish: Gold
Post Finish Thickness: 3.00µin (0.076µm)
Shrouded: Unshrouded
Contact Shape: Square
Temperature Range: -55°C ~ 125°C
Current Rating: 2.7A per contact
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Fastening: Push-Pull
