Same model may have multiple batches, images only for reference.

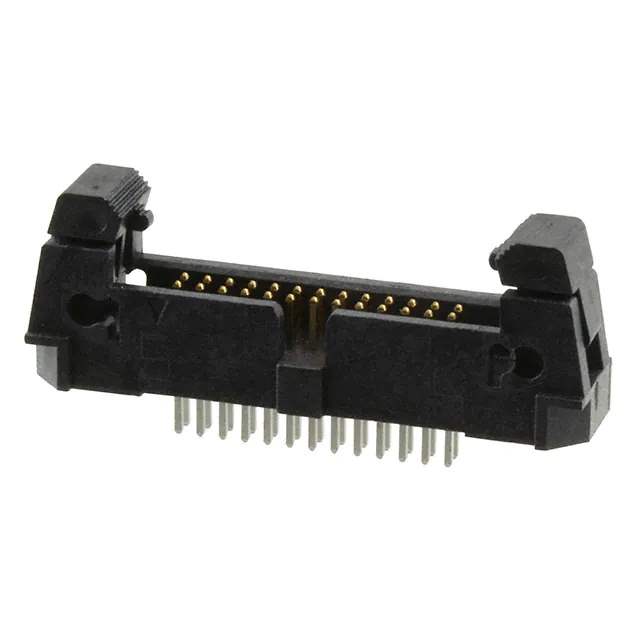

EHF-113-01-L-D Real Image
Same model may have multiple batches, images only for reference.

EHF-113-01-L-D

Part No EHF-113-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 26POS 1.27MM
Datasheet
EHF-113-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series EHF
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.107" (2.71mm)
Overall Contact Length 0.350" (8.89mm)
Insulation Height 0.325" (8.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 1.75A
Base Product Number EHF-113
Standard Package 18 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 588421-EHF-113-01-L-D
Ultra Librarian 3D Model Ultra Librarian EHF-113-01-L-D CAD Model

Description

The 582329 is a male pin header connector from Samtec Inc.

  • Series: EHF
  • Package: Tube with 18 pieces
  • Positions: 26
  • Pitch: 0.050 inches (1.27mm)
  • Keying Slot: Yes
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold with a thickness of 10.0µin (0.25µm)
  • Post Contact Finish: Tin
  • Mounting Type: Through-Hole
  • Design: Shrouded with 4 Walls
  • Operating Temperature Range: -55°C to 125°C

This connector is currently active in the market.
