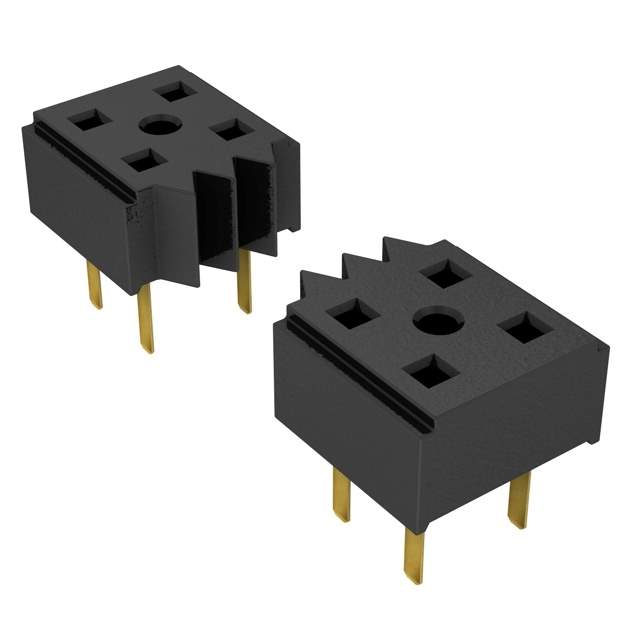

Same model may have multiple batches, images only for reference.

CLT-105-01-G-D

Name: CLT-105-01-G-D
Brand: Samtec Inc.
SKU: 1019388
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CLT-105-01-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.079 GOLD PCB / 10 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	CLT-105-01-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLT
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.083" (2.10mm)
Contact Length - Post	0.085" (2.16mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	4.1A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	CLT-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1163-05
Standard Package	1
Win Source Part Number	1019388-CLT-105-01-G-D
Ultra Librarian 3D Model	Ultra Librarian CLT-105-01-G-D CAD Model

Description

The CLT-105-01-G-D is a female socket rectangular connector manufactured by Samtec Inc.

Position Number: 10
Number of Rows: 2
Pitch: 0.079 inches
Mounting Type: Through Hole
Contact Finish: Gold
Contact Finish Thickness: 10.0μin
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
REACH: Unaffected
ECCN: EAR99
