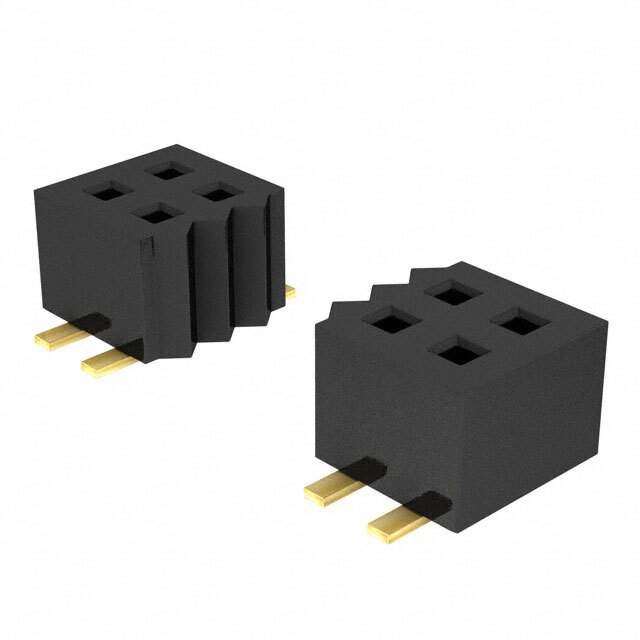

Same model may have multiple batches, images only for reference.

CLP-130-02-G-D-TR

Name: CLP-130-02-G-D-TR
Brand: Samtec Inc.
SKU: 771605
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CLP-130-02-G-D-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050" X .050 / Conn Socket Strip SKT 60 POS 1.27mm Solder ST SMD TIGER CLAW™ T/R
Datasheet	CLP-130-02-G-D-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	CLP
Packaging	Reel package
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	60
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Insulation Color	Black
Insulation Height	0.084" (2.14mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating	3.3A per Contact
Voltage Rating	240VAC, 330VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3μin (0.08μm)
Win Source Part Number	771605-CLP-130-02-G-D-TR
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CLP
Introduction Date	July 12, 1995
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian CLP-130-02-G-D-TR CAD Model

Alternative Products

Description

The 771605-CLP-130-02-G-D-TR is a high-quality connector from Samtec Inc. that belongs to the CLP series.

Package: Reel
Positions: 60
Temperature Range: -55°C to 125°C
Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Push-pull
Contact Material: Phosphor bronze
Voltage Rating: 240VAC, 330VDC
Current Rating: 3.3A per contact
Flammability Rating: UL94 V-0
Mounting: SMD
Pitch: 0.050" (1.27mm)
Contact Finish (Mating): Gold
Contact Finish Thickness (Mating): 10µin (0.25µm)
Contact Finish (Post): Gold
Contact Finish Thickness (Post): 3µin (0.08µm)
Insulation Color: Black
Popularity: Medium
Supply and Demand Status: Limited
Estimated EOL Date: 2025
Halogen-Free: Yes
Manufacturer: Samtec Inc.
