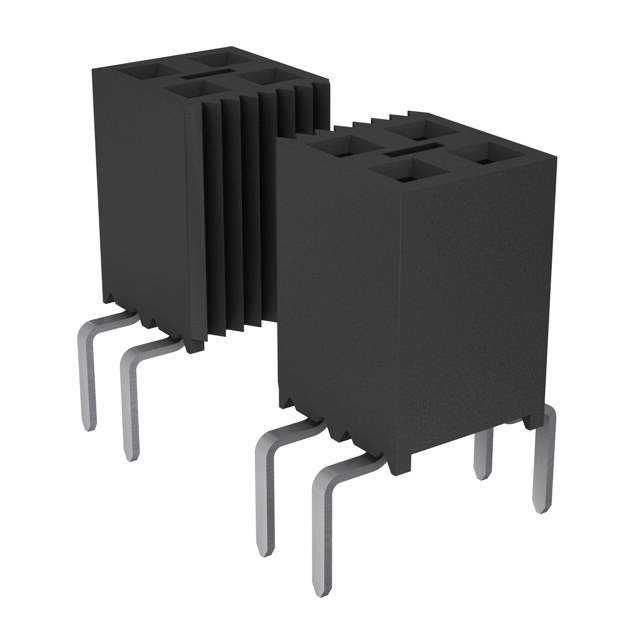

BCS-113-L-D-PE

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BCS-113-L-D-PE
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 26POS 0.1 GOLD PCB / 26 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	BCS-113-L-D-PE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Claw™ BCS
Package	Tube
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board
Number of Positions	26
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Contact Length - Post	0.128" (3.25mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.6A per Contact
Voltage Rating	475VAC
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	BCS-113
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1007-13
Standard Package	1
Win Source Part Number	1053219-BCS-113-L-D-PE
Ultra Librarian 3D Model	Ultra Librarian BCS-113-L-D-PE CAD Model

Description

The BCS-113-L-D-PE is a rectangular connector designed for use in board-to-board applications.

Positions: 26
Connector Type: Receptacle Pass-Through
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Voltage Rating: 475VAC
Contact Material: Phosphor Bronze
Pitch-Mating: 0.100" (2.54mm)
Row Spacing-Mating: 0.100" (2.54mm)
Temperature Range: -55°C to 125°C
Current Rating: 4.6A per contact
Package: Tube
Standard Package: 1
ECCN: EAR99
