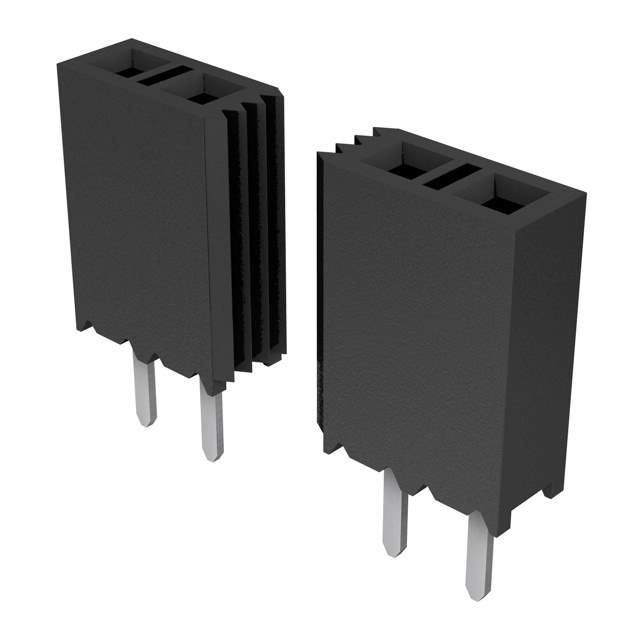

BCS-109-S-S-TE Real Image
Same model may have multiple batches, images only for reference.

BCS-109-S-S-TE

Part No BCS-109-S-S-TE
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 9POS 0.1 GOLD PCB / 9 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
BCS-109-S-S-TE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Claw™ BCS
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 9
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.6A per Contact
Voltage Rating 475VAC
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number BCS-109
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 24
Win Source Part Number 1109012-BCS-109-S-S-TE
Ultra Librarian 3D Model Ultra Librarian BCS-109-S-S-TE CAD Model

Description

The Tiger Claw™ BCS series of connectors is a reliable choice for your electrical connection needs.

  • Fastening Type: Push-pull
  • Termination: Solder
  • Voltage Rating: 475VAC
  • Current Rating: 4.6A per contact
  • Contact Material: Phosphor bronze
  • Insulation Material: Liquid crystal polymer (LCP) with glass filling
  • Contact Finish (Mating): Gold with a thickness of 30.0µin (0.76µm)
  • Contact Finish (Post): Tin
  • Contact Shape: Square
  • Contact Length: 0.122" (3.10mm)
  • Temperature Range: -55°C to 125°C
  • Flammability Rating: UL94 V-0
  • Ingress Protection: No ingress protection
  • Package: Tube
  • Connectors per Standard Package: 24
  • Style: Board-to-board
  • Pitch: 0.100" (2.54mm)
