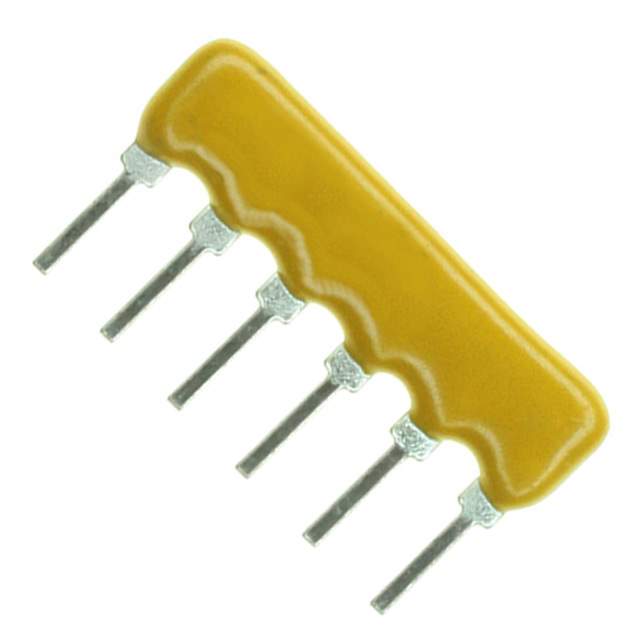

4606X-101-474LF

Part No 4606X-101-474LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 5 RES 470K OHM 6SIP  /  470k Ohm ±2% 200mW Power Per Element Bussed 5 Resistor Network/Array ±100ppm/°C 6-SIP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4600X
Package Bulk
Circuit Type Bussed
Resistance (Ohms) 470k
Tolerance ±2%
Number of Resistors 5
Number of Pins 6
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-SIP
Supplier Device Package 6-SIP
Dimension 0.598" L x 0.098" W (15.19mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4606X
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Other Names 4606X-1-474LF,4606X-101-474LF-ND,4606X101474LF
Standard Package 200
Win Source Part Number 985860-4606X-101-474LF
Ultra Librarian 3D Model Ultra Librarian 4606X-101-474LF CAD Model

Description

The Bourns Inc. 4600X series resistor network array is designed for use in a variety of applications.

  • Resistance: 470k ohms
  • Tolerance: +/- 2%
  • Temperature Coefficient: +/- 100ppm/°C
  • Circuit Type: bussed
  • Mounting: through-hole
  • Package: 6-SIP
  • Resistors: 5
  • Pins: 6
  • Power per Element: 200mW
  • Standard Package: 200 units
  • Operating Temperature: from -55°C to 125°C
  • Dimension: 0.598" L x 0.098" W (15.19mm x 2.49mm)
  • REACH: unaffected
  • ECCN: EAR99
