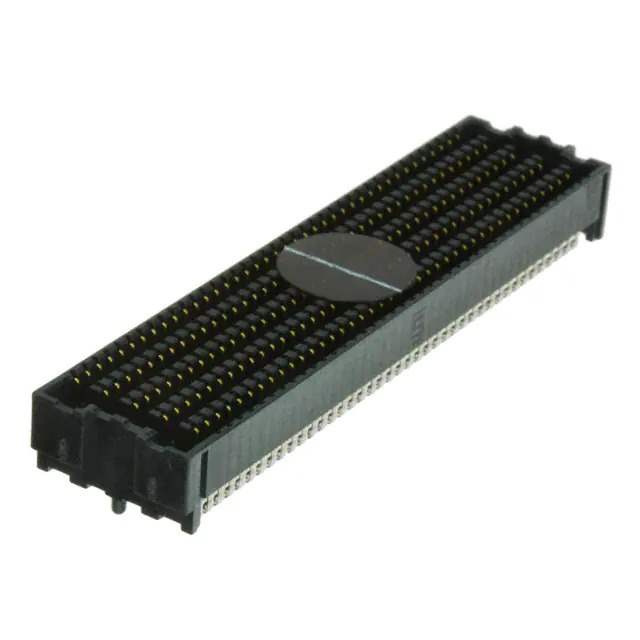

ASP-134486-01

Name: ASP-134486-01
Brand: Samtec Inc.
SKU: 565000
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ASP-134486-01
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN ARRAY RCPT 400POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	ASP
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Connector Type	Array, Female Sockets
Number of Positions	400
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting Type	Surface Mount
Features	VITA 57
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Height Above Board	0.258" (6.55mm)
Base Product Number	134486-01
Standard Package	200 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	565000-ASP-134486-01
Ultra Librarian 3D Model	Ultra Librarian ASP-134486-01 CAD Model

Description

The 565000-ASP-134486-01 is an array connector from Samtec Inc.'s ASP series.

Series: ASP
Application: edge type and mezzanine (board-to-board)
Positions: 400
Pitch: 0.050" (1.27mm)
Feature: VITA 57
Connector Type: female sockets in an array configuration
Rows: 10
Contact Finish: gold
Contact Finish Thickness: 30.0µin (0.76µm)
Package: tape & reel or cut tape
Height Above Board: 0.258" (6.55mm)
Mounting Type: surface mount
ECCN: EAR99
Product Status: active
California Prop 65: warning information
