Same model may have multiple batches, images only for reference.

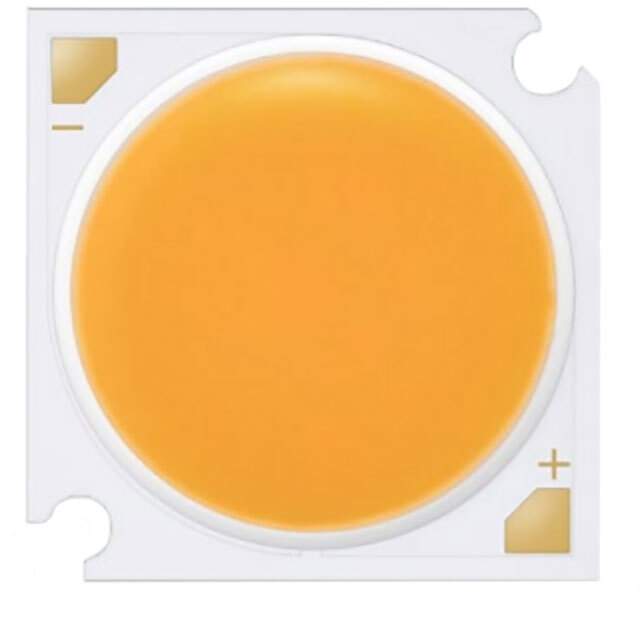

SPHWHAHDNC27YZR3DB Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNC27YZR3DB

Part No SPHWHAHDNC27YZR3DB
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT LC009D 5000K 90CRI / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Cool Square
Datasheet
SPHWHAHDNC27YZR3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen2
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1304lm (Typ)
Current - Test 270mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34V
Lumens/Watt @ Current - Test 142 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 13.50mm L x 13.50mm W
Height 1.50mm
Light Emitting Surface (LES) 9.80mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNC27
Other Names 1510-SPHWHAHDNC27YZR3DB
Standard Package 500
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241589-SPHWHAHDNC27YZR3DB
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNC27YZR3DB CAD Model

Description

The COB D Gen2 series chip on board (COB) LED lighting module is a product from Samsung Semiconductor, Inc.

  • Configuration: Square
  • Color Temperature: Cool white 5000K 3-Step MacAdam Ellipse
  • Current - Max: 540mA
  • Viewing Angle: 115°
  • Voltage - Forward (Vf) (Typ): 34V
  • Current - Test: 270mA
  • Height: 1.50mm
  • Lens Type: Flat
  • Lumens/Watt @ current - test: 142 lm/W
  • Color Rendering Index (CRI): 90
  • Temperature - Test: 85°C
  • Light Emitting Surface (LES): 9.80mm Dia
  • Dimension: 13.50mm L x 13.50mm W
  • MSL Level: 2A (4 Weeks)
  • HTSUS: 8541.41.0000
