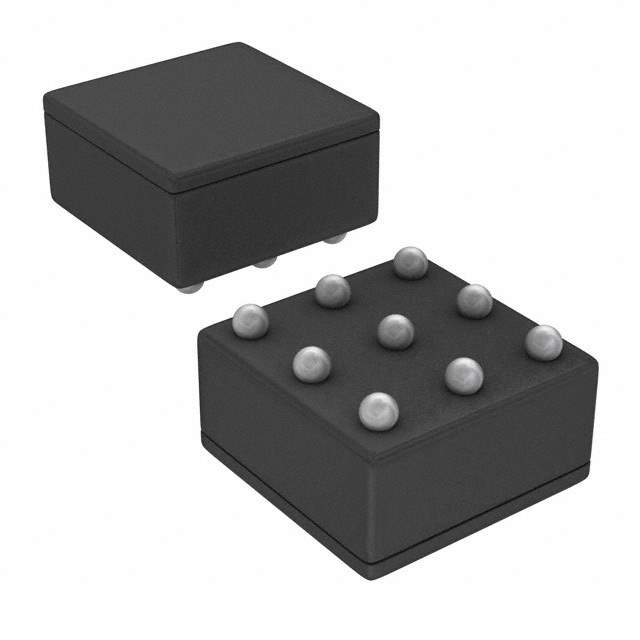

The LM3706XQBP-308 is a sophisticated microprocessor supervisory circuit designed by Texas Instruments to provide essential monitoring and control functions for complex electronic systems. This high-performance component is engineered to ensure the reliable operation of microprocessor (µP) systems by monitoring the power supply voltage, managing power-on reset, and supervising the system's integrity through a watchdog timer.

Key Features

• Voltage Monitoring: The device is capable of precise voltage monitoring, ensuring that the system operates within safe voltage levels. It provides an early warning to the µP by issuing a reset signal whenever the supply voltage drops below a predefined threshold, helping to prevent data corruption and system failures.
• Programmable Watchdog Timer: The LM3706XQBP-308 includes a programmable watchdog timer that can be set to different time intervals. This feature helps detect and recover from a µP malfunction or software lock-up, enhancing system reliability.
• Multiple Reset Time Delay Options: The device offers multiple options for reset time delay, giving designers the flexibility to choose the appropriate delay for their system's requirements.
• Low Power Consumption: Designed with power efficiency in mind, this supervisory circuit operates with low quiescent current, making it ideal for battery-powered and energy-sensitive applications.
• High Accuracy: Texas Instruments ensures high accuracy in voltage threshold detection, which is crucial for the precise control and stability of µP systems.

Applications

The LM3706XQBP-308 is versatile and can be used in a wide range of applications, including:

• Portable/Battery-Powered Devices
• Embedded Systems
• Automotive Electronics
• Industrial Control Systems
• Networking and Telecommunications Equipment

Product Quality and Support

Texas Instruments is known for its commitment to quality and reliability. The LM3706XQBP-308 is built to meet the highest industry standards, ensuring performance and longevity in the most demanding conditions. Additionally, Texas Instruments provides comprehensive technical support and documentation to assist designers in integrating this component into their systems.
