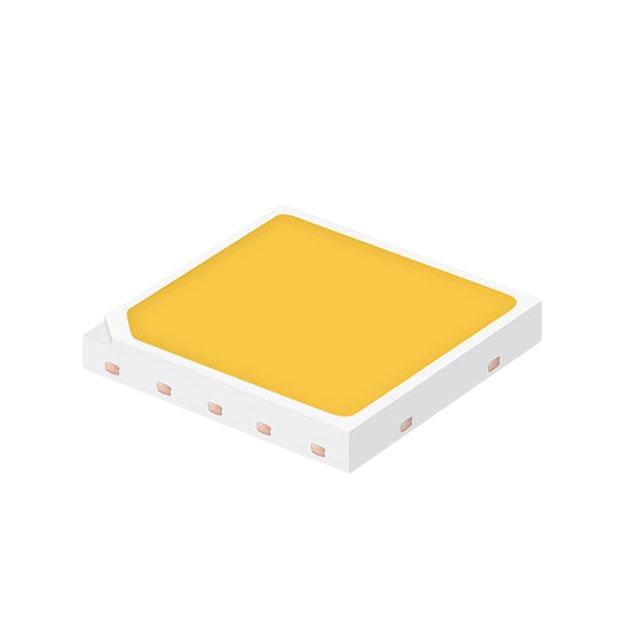

SPHWH1L5N605YEW3A2 Real Image
Same model may have multiple batches, images only for reference.

SPHWH1L5N605YEW3A2

Part No SPHWH1L5N605YEW3A2
Manufacturer Samsung
Catalog LED Lighting - White
Description LED WHITE HP 2700K 80CRI SMD / LED Lighting series White, Warm 2700K 3-Step MacAdam Ellipse 6.1V 640mA 120° 2020 (5050 Metric)
Datasheet
SPHWH1L5N605YEW3A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH502C
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Current - Test 640mA
Voltage - Forward (Vf) (Typ) 6.1V
CRI (Color Rendering Index) 80
Current - Max 880mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Supplier Device Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 3°C/W
Base Product Number SPHWH1
Other Names 1510-SPHWH1L5N605YEW3A2TR,1510-SPHWH1L5N605YEW3A2DKR,1510-SPHWH1L5N605YEW3A2CT
Standard Package 2,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1239895-SPHWH1L5N605YEW3A2
Ultra Librarian 3D Model Ultra Librarian SPHWH1L5N605YEW3A2 CAD Model

Description

The LH502C series from Samsung Semiconductor, Inc. is a high-performance white LED lighting component suitable for a range of optoelectronics applications.

  • Viewing Angle: 120 degrees
  • Mounting Type: SMD (SMT)
  • Voltage-Forward (Vf): 6.1V
  • Maximum Current Rating: 880mA
  • Package/Case: 2020 (5050 Metric)
  • Thermal Resistance: 3°C/W
