Same model may have multiple batches, images only for reference.

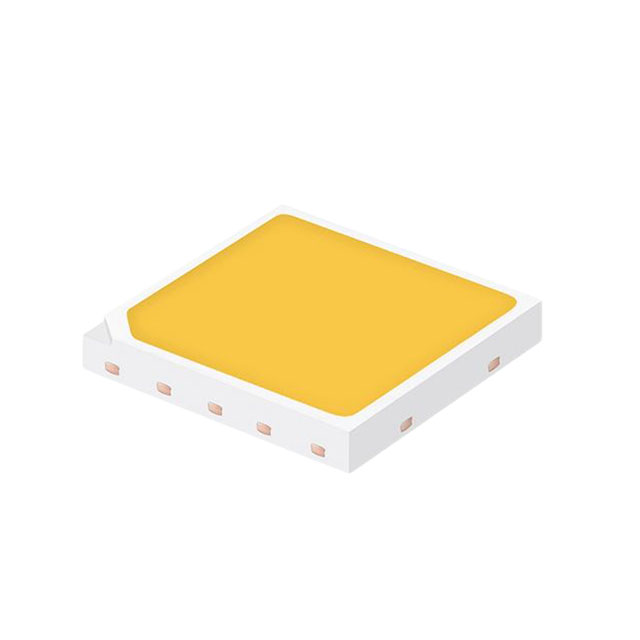

SPHWH1L5N605YET3A2 Real Image
Same model may have multiple batches, images only for reference.

SPHWH1L5N605YET3A2

Part No SPHWH1L5N605YET3A2
Manufacturer Samsung
Catalog LED Lighting - White
Description LED WHITE HP 4000K 80CRI SMD / LED Lighting series White, Neutral 4000K 3-Step MacAdam Ellipse 6.1V 640mA 120° 2020 (5050 Metric)
Datasheet
SPHWH1L5N605YET3A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH502C
Package Tape & Reel
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Current - Test 640mA
Voltage - Forward (Vf) (Typ) 6.1V
CRI (Color Rendering Index) 80
Current - Max 880mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Supplier Device Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 3°C/W
Base Product Number SPHWH1
Other Names 1510-SPHWH1L5N605YET3A2CT,1510-SPHWH1L5N605YET3A2DKR,1510-SPHWH1L5N605YET3A2TR
Standard Package 2,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1239878-SPHWH1L5N605YET3A2
Ultra Librarian 3D Model Ultra Librarian SPHWH1L5N605YET3A2 CAD Model

Description

The LH502C is a high-quality LED lighting product that is designed to provide neutral white light.

  • Package: Tape and reel package
  • Height: 0.031 inches
  • Standard Package: 2,000
  • Mounting: SMD (SMT) technology
  • Maximum Current: 880mA
  • Viewing Angle: 120 degrees
  • Voltage Forward (Vf): 6.1V
  • Current Test: 640mA
  • CCT: 4000K 3-Step MacAdam Ellipse
  • CRI: 80
  • Thermal Resistance of the Package: 3°C/W
  • Supplier Device Package: SMD
