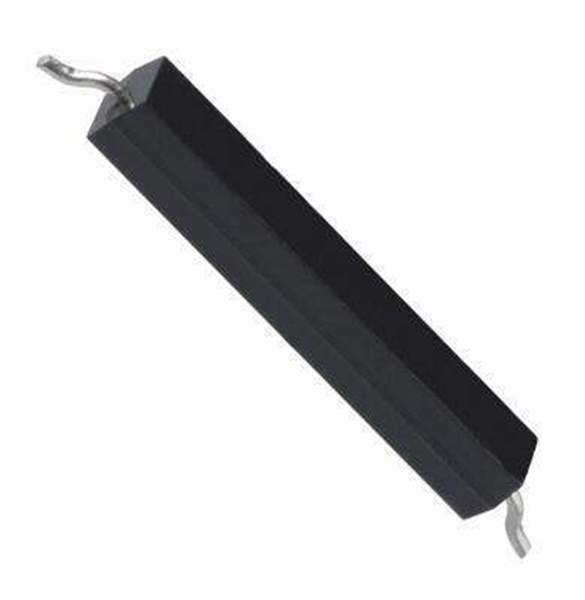

59165-1-U-00-D Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59165-1-U-00-D

Part No 59165-1-U-00-D
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Littelfuse Inc.
Category Switches Magnetic, Reed Switches
Product Status Active
Type Molded Body Reed
Circuit SPST-NO
Operate Range 20 ~ 25AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Mounting Type Surface Mount
Termination Style Gull Wing
Win Source Part Number WS1209676-59165-1-U-00-D
Ultra Librarian 3D Model Ultra Librarian 59165-1-U-00-D CAD Model

Description

Molded Body Reed Switch SPST-NO 20 ~ 25AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
