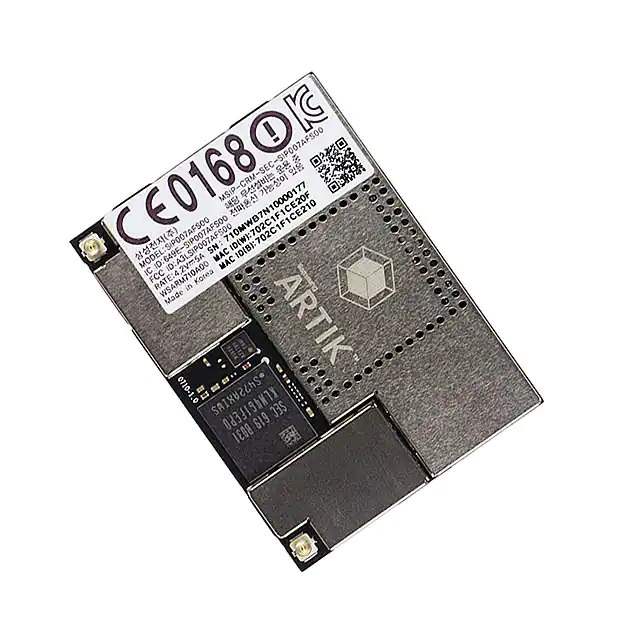

Same model may have multiple batches, images only for reference.

SIP-007AFS001

Name: SIP-007AFS001
Brand: Samsung
SKU: 933815
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SIP-007AFS001
Manufacturer	Samsung
Catalog	RF Transceiver Modules
Description	RF TXRX MODULE BLE WIFI U.FL SMD / Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v4.0 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Samsung
Series	ARTIK
Package	Tray
Product Status	Obsolete
Programmable	Not Verified
RF Family/Standard	Bluetooth, WiFi
Protocol	802.11a/b/g/n, Bluetooth v4.0
Frequency	2.4GHz
Data Rate	54Mbps
Power - Output	16dBm
Sensitivity	-92dBm
Serial Interfaces	I²C, I²S, JTAG, SPI, UART, USB
Antenna Type	Antenna Not Included, U.FL
Memory Size	4GB Flash, 1GB DRAM
Voltage - Supply	3.3V
Mounting Type	Surface Mount
Temperature Range - Operating	0°C ~ 70°C
Package / Case	Module
Standard Package	15 pcs
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN	5A992C
HTSUS	8517.62.0090
Win Source Part Number	933815-SIP-007AFS001
Ultra Librarian 3D Model	Ultra Librarian SIP-007AFS001 CAD Model

Description

The 933815-SIP-007AFS001 is an RF transceiver module and modem from the ARTIK series by Samsung.

Frequency: 2.4GHz
Protocols: 802.11a/b/g/n and Bluetooth v4.0
Data Rate: 54Mbps
Memory: 4GB Flash and 1GB DRAM
Antenna: Not included, U.FL antenna type
Voltage Supply: 3.3V
Mounting: Surface Mount
Package: Module
Temperature Range: 0°C to 70°C
Status: Obsolete
Package Quantity: 15 pcs
