Same model may have multiple batches, images only for reference.

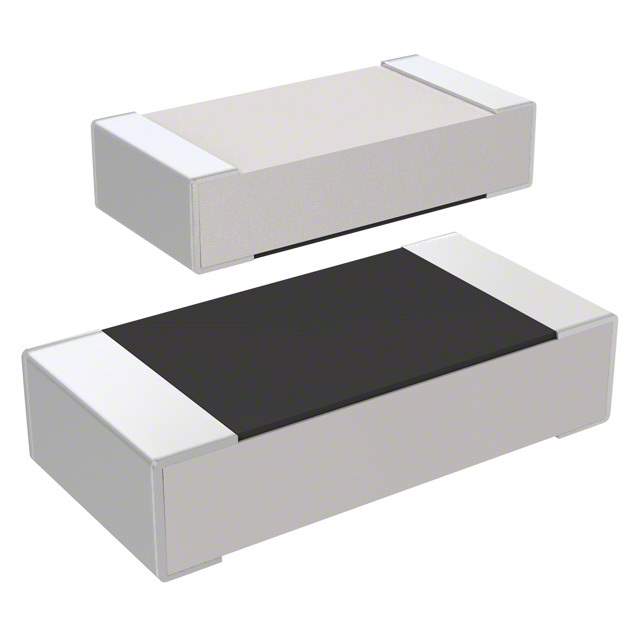

RUW3216FR100CS Real Image
Same model may have multiple batches, images only for reference.

RUW3216FR100CS

Part No RUW3216FR100CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 1W 1206 / 100 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Current Sense, Moisture Resistant Thick Film
Datasheet
RUW3216FR100CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RUW
Package Tape & Reel
Product Status Obsolete
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Current Sense, Moisture Resistant
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339280-RUW3216FR100CS
Ultra Librarian 3D Model Ultra Librarian RUW3216FR100CS CAD Model

Description

The RUW3216FR100CS is a chip resistor with a resistance of 100 mOhms.

  • Resistance: 100 mOhms
  • Type: Thick Film
  • Power Rating: 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±150ppm/°C
  • Moisture Resistant: Yes
  • Terminations: 2
  • Package: 1206 (3216 Metric)
  • Height: 0.028" (0.70mm)
  • Operating Temperature: -55°C to 155°C
  • Manufacturer: Samsung Electro-Mechanics
  • Standard Package: 5,000
