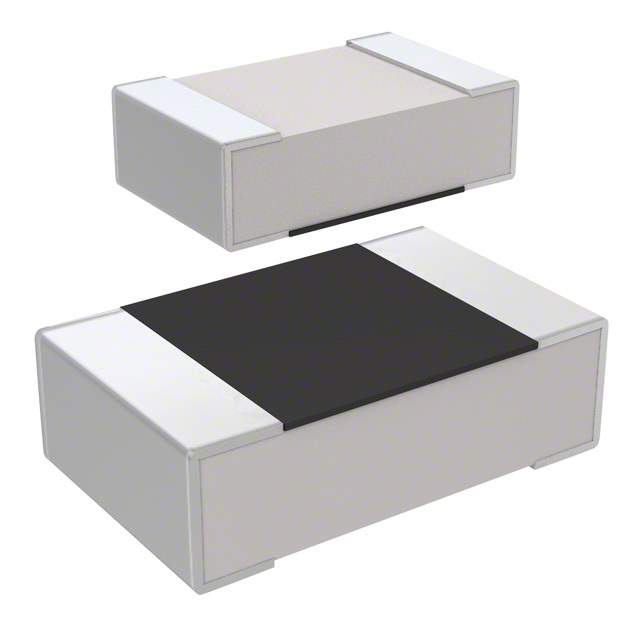

RC2012J220CS Real Image
Same model may have multiple batches, images only for reference.

RC2012J220CS

Part No RC2012J220CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES SMD 22 OHM 5% 1/8W 0805 / 22 Ohms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film
Datasheet
RC2012J220CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 22 Ohms
Tolerance ±5%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-5493-1,1276-5493-2,1276-5493-6
Standard Package 5,000
Win Source Part Number 1113829-RC2012J220CS
Ultra Librarian 3D Model Ultra Librarian RC2012J220CS CAD Model

Description

The Samsung RC2012J220CS is a chip resistor surface mount product.

  • Tolerance: ±5%
  • Package: tape and reel
  • Standard Package: 5,000
  • Temperature Coefficient: ±100ppm/°C
  • Power Consumption: 0.125W, 1/8W
  • Resistance: 22 Ohms
