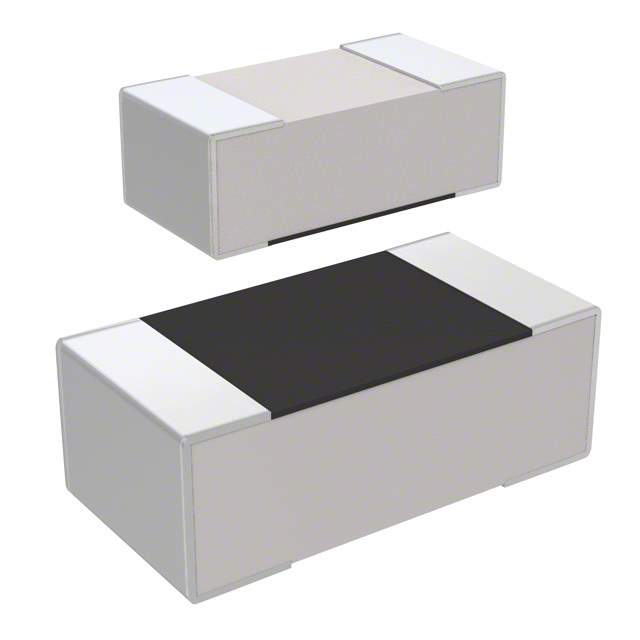

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Samsung Electro-Mechanics
Packaging Reel
Resistance 1 kOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package 0603
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Maximum) 0.55mm
Number of Terminations 2
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802275-RC1608F102CS
Ultra Librarian 3D Model Ultra Librarian RC1608F102CS CAD Model

Description

The Samsung Electro-Mechanics 802275-RC1608F102CS is a high-popularity electronic component that comes in a 0603 package.

  • Package: 0603
  • Type: Thick-film resistor
  • Resistance: 1 kOhms
  • Power Rating: 0.1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
