Same model may have multiple batches, images only for reference.

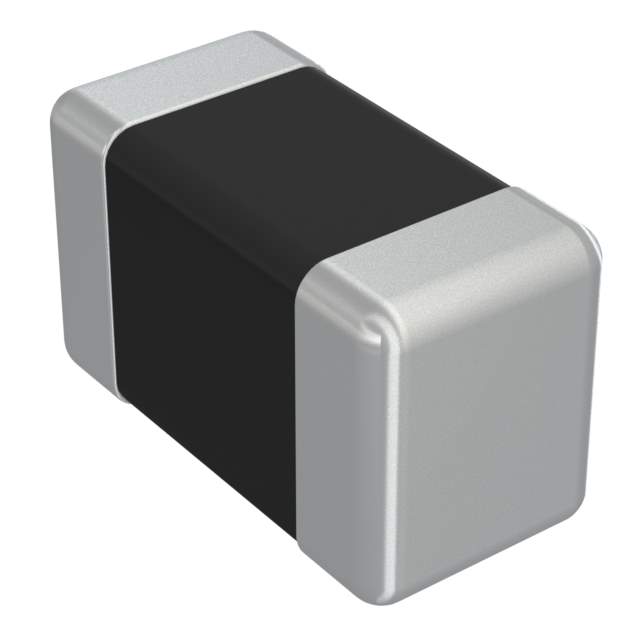

CIS10P700AC Real Image
Same model may have multiple batches, images only for reference.

CIS10P700AC

Part No CIS10P700AC
Manufacturer Samsung
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 70 OHM 0603 1LN / 70 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 4A 20mOhm
Datasheet
CIS10P700AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Samsung Electro-Mechanics
Packaging Reel - TR
Product Status Obsolete
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 70 Ohms @ 100 MHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 20mOhm
Temperature Range - Operating -55°C ~ 125°C
Case / Package 0603 (1608 Metric)
Mounting Surface Mount
Height (Max) 0.037" (0.95mm)
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 1276-6352-6,1276-6352-2,1276-6352-1
Standard Package 4,000
Win Source Part Number 1328074-CIS10P700AC
Ultra Librarian 3D Model Ultra Librarian CIS10P700AC CAD Model

Description

The Samsung Electro-Mechanics ferrite bead and chip is a power line filter type with a size/dimension of 0.063" L x 0.032" W (1.60mm x 0.80mm).

  • Size/Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
  • Impedance: 70 Ohms @ 100 MHz
  • DC Resistance (DCR) (Max): 20mOhm
  • Device Package: 0603 (1608 Metric)
  • Temperature Range: -55°C ~ 125°C
  • Current Rating (Max): 4A
  • Mounting Type: Surface Mount
  • Standard Package: 4,000
  • ROHS3 Compliant: Yes
