Same model may have multiple batches, images only for reference.

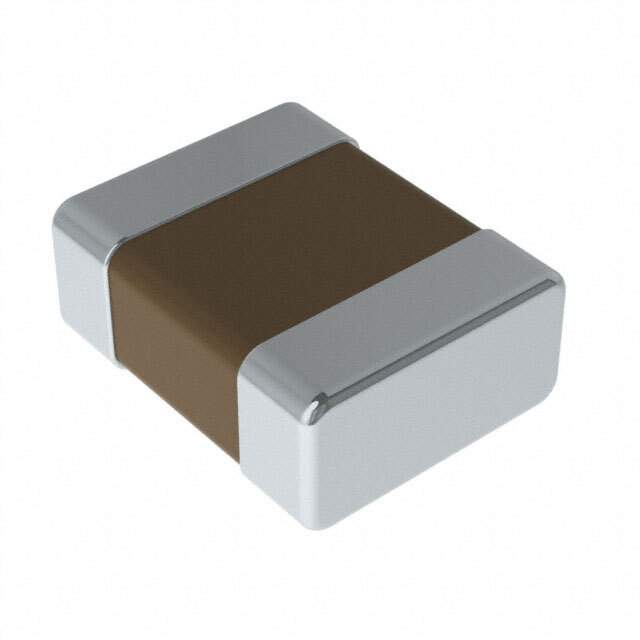

CIGW201610GHR33MLE Real Image
Same model may have multiple batches, images only for reference.

CIGW201610GHR33MLE

Part No CIGW201610GHR33MLE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 330NH 4A 23 MOHM SMD / 330 nH Unshielded Drum Core, Wirewound Inductor 4 A 23mOhm Max 0806 (2016 Metric)
Datasheet
CIGW201610GHR33MLE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Samsung Electro-Mechanics
Series CIGW
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 330 nH
Tolerance ±20%
Current Rating (Amps) 4 A
Shielding Unshielded
DC Resistance (DCR) 23mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 1276-6907-1,1276-6907-2,1276-6907-6
Standard Package 3,000
Win Source Part Number 1052012-CIGW201610GHR33MLE
Ultra Librarian 3D Model Ultra Librarian CIGW201610GHR33MLE CAD Model

Description

The CIGW series fixed inductor has a drum core and wirewound type.

  • Inductance: 330 nH
  • Tolerance: ±20%
  • Package: Tape and reel
  • Shielding: Unshielded
  • DC Resistance: 23mOhm Max
  • Current Rating: 4 A
  • Height Seated (Max): 0.039" (1.00mm)
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
