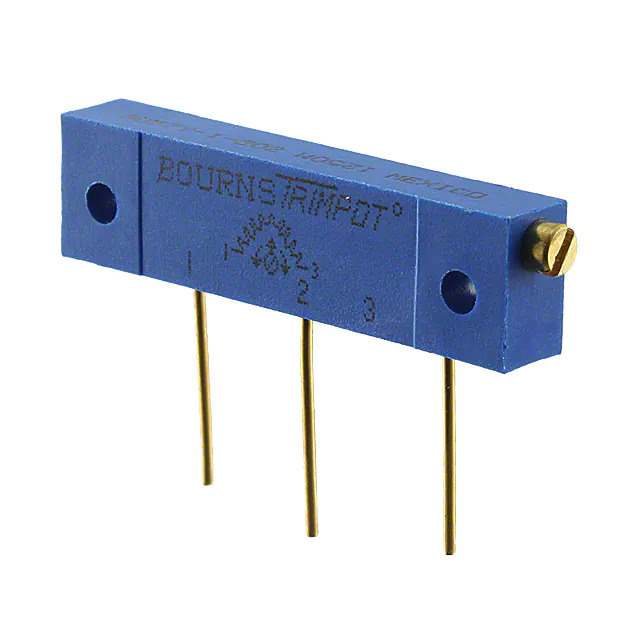

3057Y-1-503 Real Image
Same model may have multiple batches, images only for reference.

3057Y-1-503

Part No 3057Y-1-503
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 1W PC PIN SIDE / 50 kOhms 1W PC Pins Chassis Mount Trimmer Potentiometer Wirewound 22.0 Turn Side Adjustment
Datasheet
3057Y-1-503 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3057 - Sealed
Package Tube
Product Status Active
Resistance 50 kOhms
Power (Watts) 1W
Tolerance ±5%
Temperature Coefficient ±50ppm/°C
Number of Turns 22
Adjustment Type Side Adjustment
Resistive Material Wirewound
Mounting Type Chassis Mount
Termination Style PC Pins
Size / Dimension Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm)
Base Product Number 3057Y
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.31.0000
California Prop 65 Warning Information
Win Source Part Number 906510-3057Y-1-503
Ultra Librarian 3D Model Ultra Librarian 3057Y-1-503 CAD Model

Description

The Trimpot 3057 series is a high-quality trimmer potentiometer designed for precise adjustments in various electronic circuits.

  • Series: 3057
  • Resistance: 50k ohms
  • Power Rating: 1W
  • Resistive Material: Wirewound
  • Adjustment: Side adjustment
  • Mounting: Chassis mount
  • Termination Style: PC pin
  • Size: Rectangular 0.315 inches x 0.190 inches
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
