Same model may have multiple batches, images only for reference.

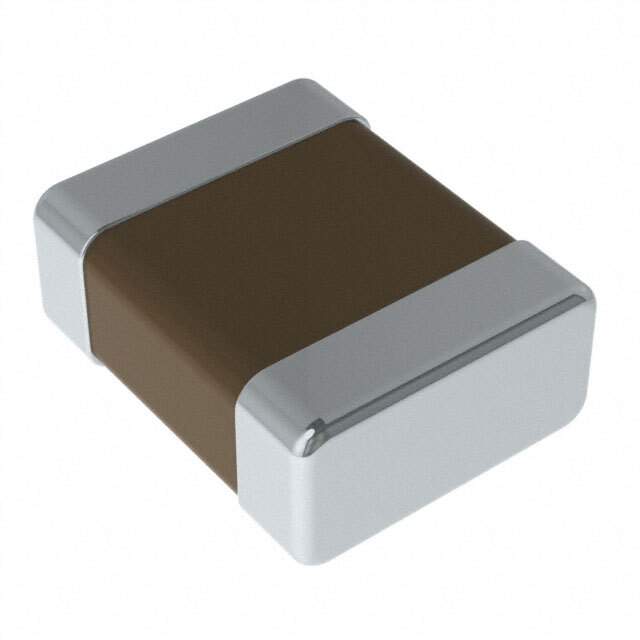

CIGT252010LMR47MNE Real Image
Same model may have multiple batches, images only for reference.

CIGT252010LMR47MNE

Part No CIGT252010LMR47MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 470NH 4.2A 29MOHM SMD / 470 nH Unshielded Thin Film Inductor 4.2 A 29mOhm Max 1008 (2520 Metric)
Datasheet
CIGT252010LMR47MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Samsung Electro-Mechanics
Series CIGT
Package Tape & Reel
Type Thin Film
Material - Core Metal Composite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 4.2 A
Current - Saturation (Isat) 6A
Shielding Unshielded
DC Resistance (DCR) 29mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 1276-6944-6,1276-6944-2,1276-6944-1
Standard Package 3,000
Win Source Part Number 977284-CIGT252010LMR47MNE
Ultra Librarian 3D Model Ultra Librarian CIGT252010LMR47MNE CAD Model

Description

The Samsung Electro-Mechanics 977284-CIGT252010LMR47MNE is a fixed inductor with a shielding of unshielded.

  • Shielding: Unshielded
  • Inductance: 470nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 29mOhm Max
  • Mounting Type: Surface Mount
  • Series: CIGT
  • Package: Tape and Reel
  • Standard Package: 3,000 pieces
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Maximum Seated Height: 0.039" (1.00mm)
  • Manufacturer: Samsung Electro-Mechanics
  • Other Names: 1276-6944-6, 1276-6944-2, 1276-6944-1
