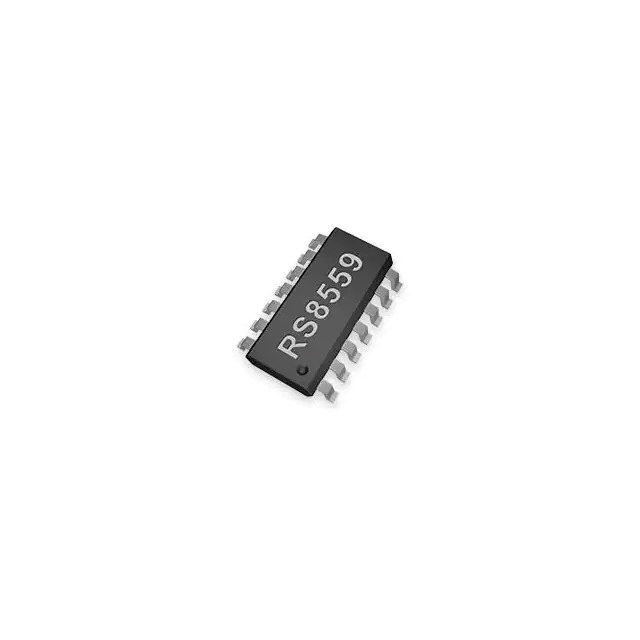

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Runic Technology
Series -
Package Tape & Reel
Product Status Active
Amplifier Type CMOS
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 2.5V/µs
Gain Bandwidth Product 4.3 MHz
Current - Input Bias 1 pA
Voltage - Input Offset 1.5 µV
Current - Supply 650µA (x4 Channels)
Current - Output / Channel 48 mA
Voltage - Supply Span (Min) 2.5 V
Voltage - Supply Span (Max) 5.5 V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SOIC
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1357477-RS8559XP
Ultra Librarian 3D Model Ultra Librarian RS8559XP CAD Model

Description

The RS8559XP is an instrumentation amplifier from Runic Technology.

  • Manufacturer: Runic Technology
  • Type: Instrumentation Amplifier
  • Applications: Instrumentation, OP Amps, Buffer Amp
  • Operating Temperature Range: -40°C to 125°C
  • Output Type: Rail-to-Rail
  • Supply Current: 650µA (x4 Channels)
  • Output Current: 48mA
  • Gain Bandwidth Product: 4.3 MHz
  • Package: 14-SOIC
  • Mounting Type: Surface Mount
