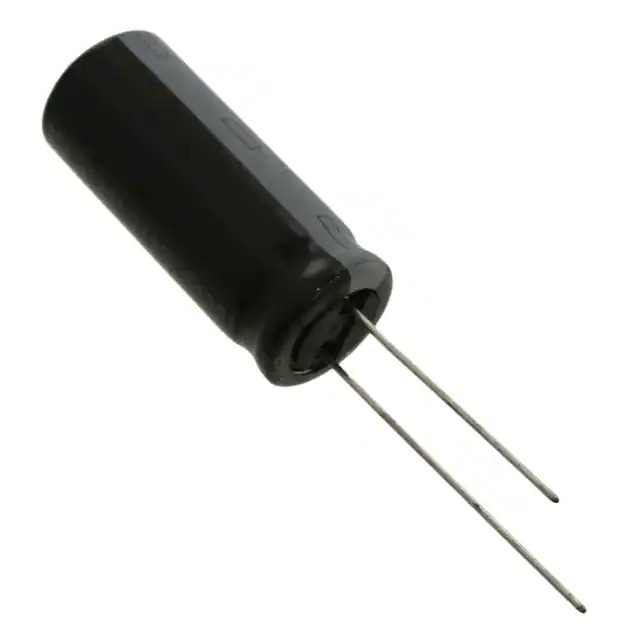

Same model may have multiple batches, images only for reference.
63ZLH680MEFC12.5X35 Rubycon
Same model may have multiple batches, images only for reference.

63ZLH680MEFC12.5X35

Part No 63ZLH680MEFC12.5X35
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 63V RADIAL / 680 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.441 A @ 120 Hz
Impedance 33 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.457" (37.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358146-63ZLH680MEFC12.5X35
Ultra Librarian 3D Model Ultra Librarian 63ZLH680MEFC12.5X35 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a reliable component designed for general-purpose applications.

  • Manufacturer: Rubycon
  • Series: ZLH
  • Capacitance: 680 μF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Ripple Current: 1.441 A @ 120 Hz
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Mounting Type: Through Hole
  • Height - Seated (Max): 1.457" (37.00mm)
  • Lifetime @ Temp.: 10000 Hrs @ 105°C
  • Polarization: Polar
  • Impedance: 33 mOhms
  • Status: Active
