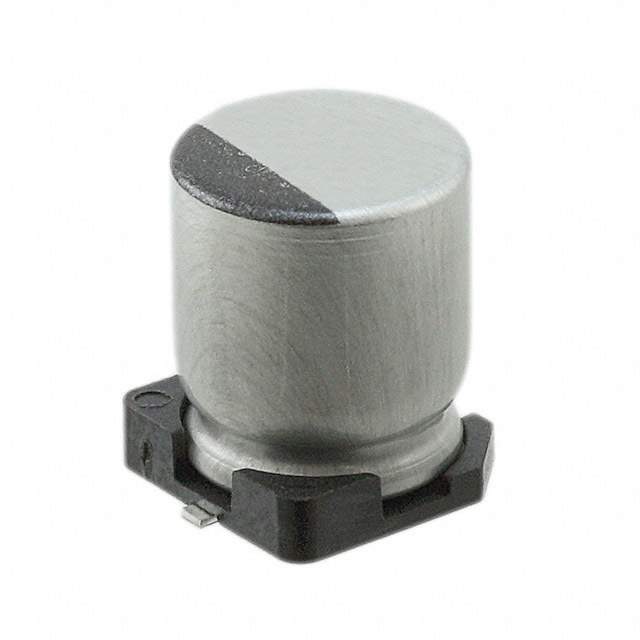

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 62.4 mA @ 120 Hz
Ripple Current @ High Frequency 195 mA @ 100 kHz
Impedance 680 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1657-1,50TZV47M63X8,1189-1657-6,1189-1657-2
Standard Package 900
Win Source Part Number 1039017-50TZV47M6.3X8
Ultra Librarian 3D Model Ultra Librarian 50TZV47M6.3X8 CAD Model

Description

The Rubycon 1039017-50TZV47M6.3X8 is a high-quality aluminum electrolytic capacitor that is designed for automotive applications.

  • Capacitance: 47 µF
  • Voltage Rating: 50 V
  • Applications: power supply circuits, audio amplifiers, and other electronic equipment
  • Series: TZV series
  • Package: radial can
  • Mounting: SMD (SMT)
  • Lifespan: 2000 hours @ 105°C
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Packaging: tape and reel
  • Standard Package: 900
