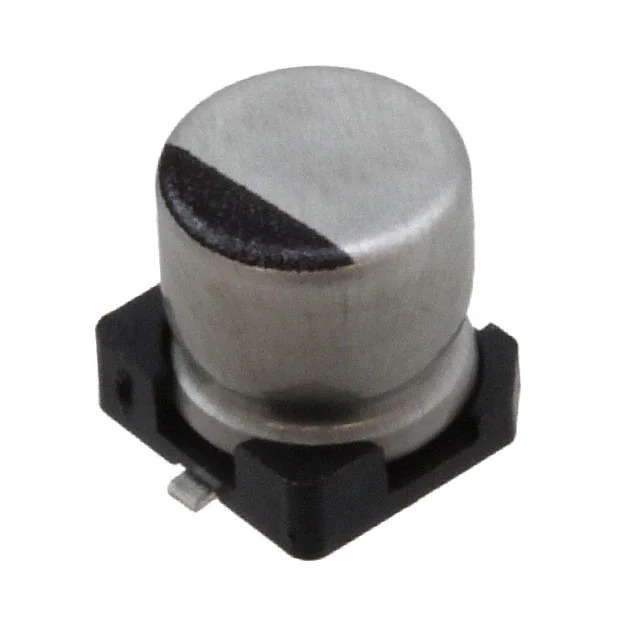

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 30 mA @ 120 Hz
Ripple Current @ High Frequency 45 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360199-50SEV10M5X5.5
Ultra Librarian 3D Model Ultra Librarian 50SEV10M5X5.5 CAD Model

Description

The Rubycon 1360199-50SEV10M5X5.5 capacitor is a surface mount aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 10 µF
  • Voltage Rating: 50 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Package: Radial, Can - SMD
  • Size: 0.197" Dia x 0.217" H
  • Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Lifetime: 2000 hours @ 85°C
  • Ripple Current (Low Freq): 30 mA @ 120 Hz
  • Ripple Current (High Freq): 45 mA @ 10 kHz
  • Application: Automotive
